A good PCB layout should ensure minimal thermal resistance, use a solid ground plane, and keep high-current paths short. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal vias array. Refer to onsemi's application notes and thermal management guidelines for more information.
Choose input capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. Output capacitors should have low ESR, high ripple current rating, and a voltage rating that exceeds the maximum output voltage. Consult onsemi's application notes and capacitor selection guides for more information.
The soft-start time should be set based on the specific application's requirements, typically between 1-10 ms. The tracking feature should be set to ensure the output voltage is within the desired range during startup and transient events. Consult onsemi's application notes and evaluation boards for more information.
Follow onsemi's guidelines for PCB layout, component selection, and shielding. Use a shielded inductor, and consider adding EMI filters or common-mode chokes. Ensure proper grounding, and use a Faraday cage or metal enclosure if necessary. Consult onsemi's application notes and EMC guidelines for more information.
The thermal shutdown threshold is typically around 150°C, and the overcurrent protection threshold is typically around 2-3 times the maximum rated current. When these thresholds are exceeded, the device will shut down or limit the current to prevent damage. Consult onsemi's datasheet and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FNB51560T1 Overview

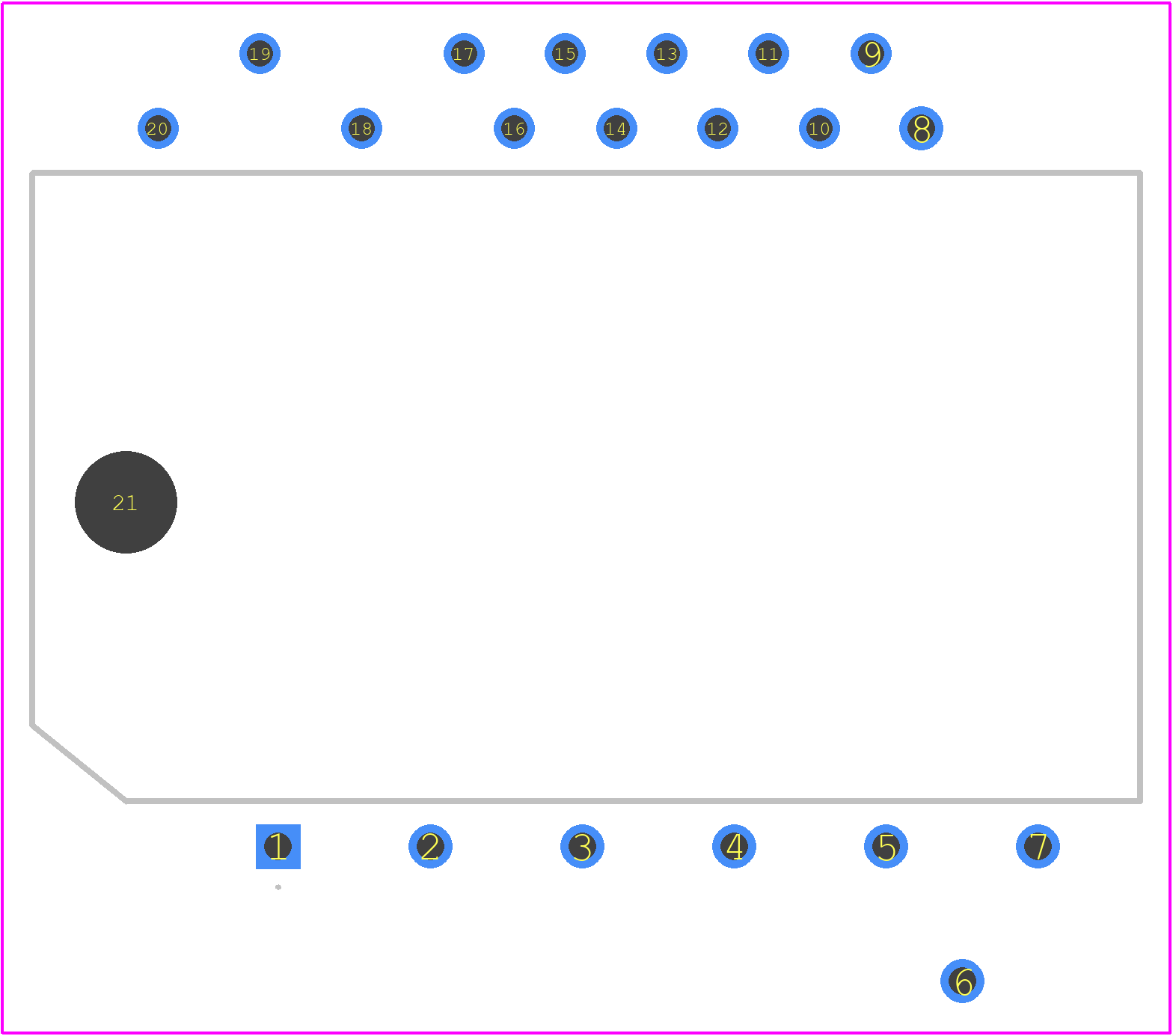

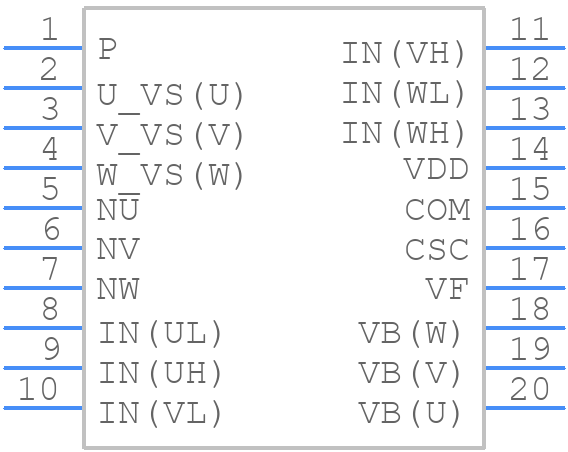

Use the download button to access the FNB51560T1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FNB51,
or try a keyword search, such as Motion Control Electronics
