A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range.
Monitor the device's drain-source voltage (VDS), drain current (ID), and junction temperature (TJ). Implement overcurrent protection, undervoltage lockout, and thermal shutdown to prevent damage.
Use a dedicated gate driver IC or a high-current, low-impedance gate drive circuit. Ensure a fast rise and fall time (<10 ns) and a sufficient gate-source voltage (VGS) to minimize switching losses.
Implement ESD protection diodes on the drain and source pins, and consider adding a TVS (transient voltage suppressor) device for additional protection. Ensure a robust PCB layout with minimal lead lengths and a low-impedance ground plane.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FNB81060T3 Overview

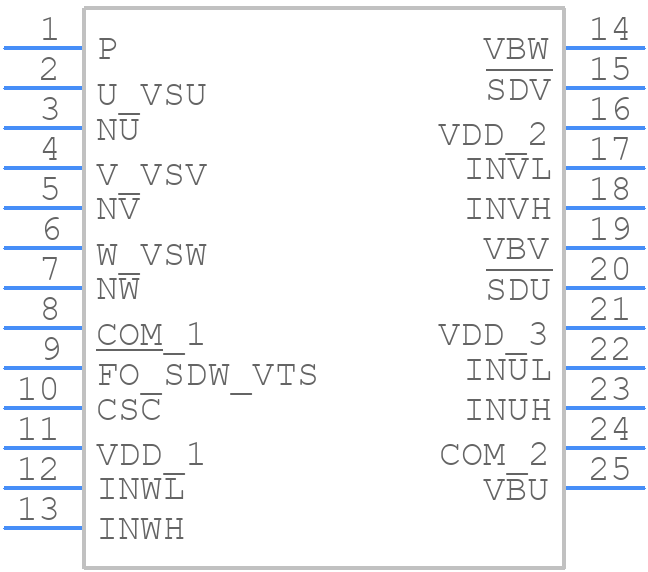

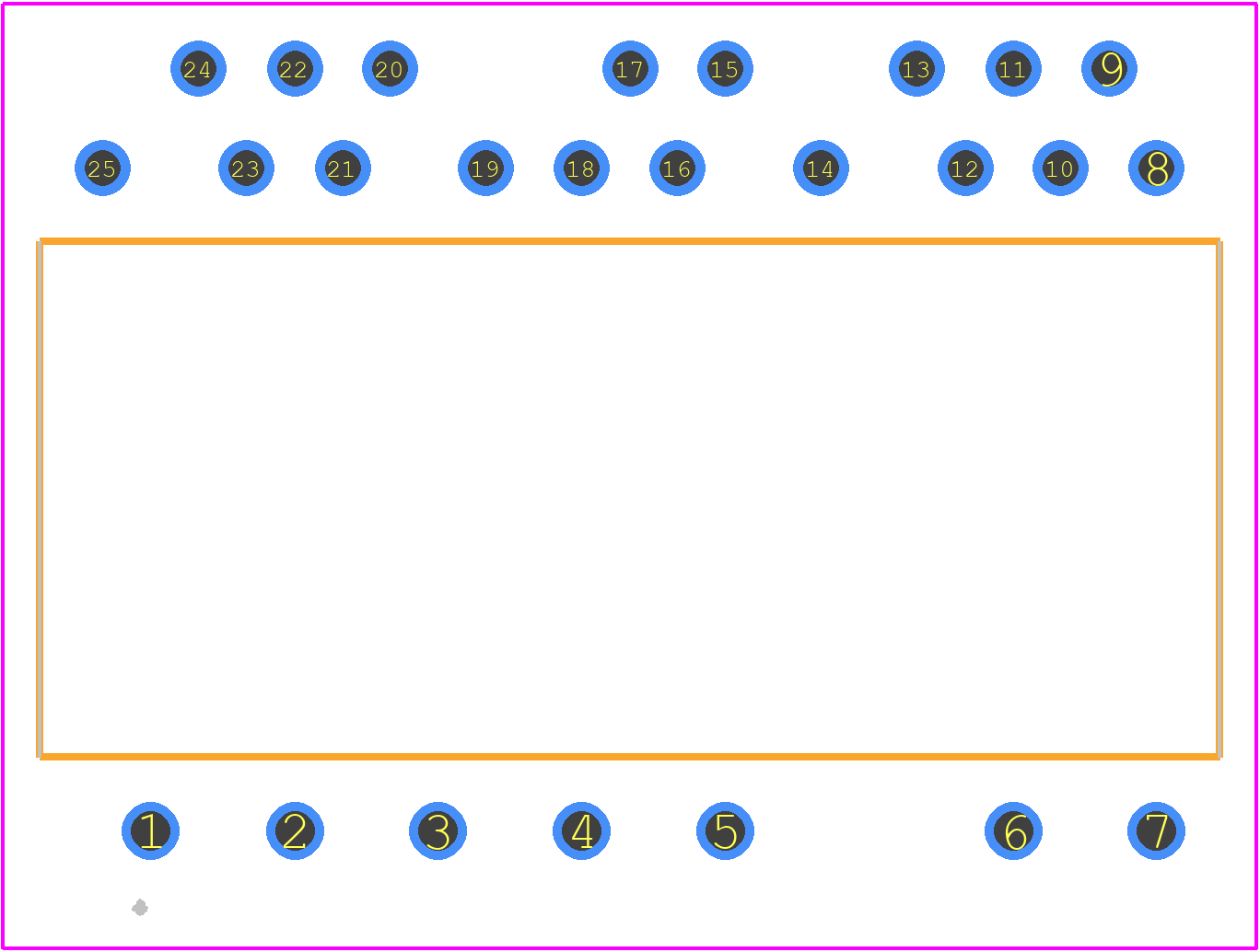

Use the download button to access the FNB81060T3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FNB81,
or try a keyword search, such as Motion Control Electronics
