FOD0720 - onsemi

Description: 20kV/µs minimum CMR ; 25Mbit/sec (FOD0721 and FOD0720) ; 40ns max. propagation delay ; 12.5Mbit/sec (FOD0710) ; -40 to 100°C temperature range ; Extended industrial temperate range ; Pulse Width Distortion ; Data Rate, Non-Return Zero Coding ; 8ns (FOD0720 and FOD0710) ; IEC60747-5-2 pending approval; Safety and regulatory approvals ; UL1577, 3750 VACrms for 1 min. (File #E90700, Volume 2) ; +5V CMOS compatibility ; 6ns (FOD0721)

Download FOD0720 Model

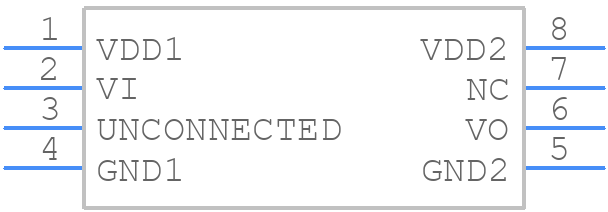

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD0720 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8 pin SO
click to zoom

FOD0720 Details

  • Manufacturer Part Number:

    FOD0720

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    25 MBps

  • Forward Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.01 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.09 W

  • Response Time-Nom:

    5e-9 ns

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

FOD0720 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD0720 should minimize parasitic inductance and capacitance. Keep the input and output traces short and wide, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The FOD0720 requires a bias voltage of 5V to 15V. Ensure the bias voltage is stable and within the recommended range. A decoupling capacitor (e.g., 10uF) should be placed close to the bias pin to filter out noise. Additionally, a series resistor (e.g., 1kΩ) can be used to limit the current and prevent damage.
  • The FOD0720's output pins are designed to handle a maximum current of 100mA. Exceeding this limit can cause damage to the device. Ensure that the output current is within the recommended range to prevent overheating and damage.
  • The FOD0720 is sensitive to ESD and overvoltage. Use ESD protection devices (e.g., TVS diodes) on the input and output pins to prevent damage. Additionally, ensure that the device is handled and stored in an ESD-safe environment. Overvoltage protection can be achieved using voltage regulators or zener diodes.
  • The FOD0720 is designed to operate within a temperature range of -40°C to 125°C. Operating the device outside this range can affect its performance and reliability. Ensure that the device is operated within the recommended temperature range to ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD0720 Overview

Use the download button to access the FOD0720 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD07, or try a keyword search, such as Optocoupler
