FOD3120 - onsemi

Description: High noise immunity characterized by 35kV/µs minimum common mode rejection; 2.5A peak output current driving capability for most 800V/20A IGBT; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Wide supply voltage range from 15V to 30V; Fast switching speed; 400ns max. propagation delay; 100ns max. pulse width distortion; Under-Voltage LockOut (UVLO) with hysteresis; Extended industrial temperate range, -40°C to 100°C temperature range; Safety and regulatory app

Download FOD3120 Model

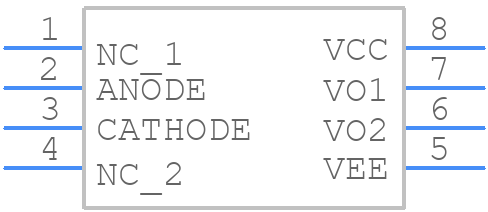

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3120 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-DIP
click to zoom
3D Models
FOD3120 - onsemi  - 3D model - Dual-In-Line Packages - 8-DIP
click to zoom

FOD3120 Details

  • Manufacturer Part Number:

    FOD3120

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

FOD3120 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3120 involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the photodiode and the amplifier. A 4-layer PCB with a dedicated ground plane is recommended.
  • The FOD3120 requires a bias voltage of 5V to 24V. Ensure the bias voltage is stable and noise-free. A decoupling capacitor of 10uF to 100uF should be placed close to the device to filter out noise.
  • The FOD3120 is rated for operation up to 85°C ambient temperature. However, it's recommended to keep the ambient temperature below 70°C for optimal performance and reliability.
  • The FOD3120 is optimized for use with the SFH 203 photodiode. While it may be possible to use other photodiodes, the performance and sensitivity may vary. Consult the onsemi application note for guidance on using alternative photodiodes.
  • Common issues with the FOD3120 include noise, oscillations, or non-response. Check the PCB layout, bias voltage, and photodiode connection. Use an oscilloscope to verify the output signal and check for noise or oscillations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3120 Overview

Use the download button to access the FOD3120 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler

Parts related to FOD3120

Showing 0 results

FOD3120 Alternates

Showing results

Image Part Number Model
Part Image FOD3120V onsemi

Logic IC Output Optocoupler, 1-Channel, 1-Element, 5000V Isolation
