FOD3120SD - onsemi

Description: High noise immunity characterized by 35kV/µs minimum common mode rejection; 2.5A peak output current driving capability for most 800V/20A IGBT; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Wide supply voltage range from 15V to 30V; Fast switching speed; 400ns max. propagation delay; 100ns max. pulse width distortion; Under-Voltage LockOut (UVLO) with hysteresis; Extended industrial temperate range, -40°C to 100°C temperature range; Safety and regulatory app

Download FOD3120SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

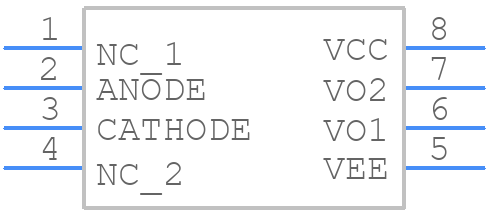

FOD3120SD - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3120SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Option S
click to zoom
3D Models
FOD3120SD - onsemi - 3D model - Small Outline Packages - Option S
click to zoom

FOD3120SD Details

  • Manufacturer Part Number:

    FOD3120SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

FOD3120SD Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3120SD should minimize the distance between the LED and the photodiode, and ensure that the LED anode and cathode are connected to the correct pins. A ground plane under the device can also help reduce noise.
  • The FOD3120SD requires a forward current of 1-10mA for the LED, and a voltage supply of 4.5-30V for the photodiode. Ensure that the voltage supply is stable and the current is within the recommended range for proper operation.
  • The FOD3120SD is rated for operation from -40°C to 100°C. However, the device's performance may degrade at extreme temperatures, so it's essential to ensure proper heat sinking and thermal management.
  • The FOD3120SD has a bandwidth of 25 kHz, making it suitable for low-to-medium frequency applications. For high-frequency applications, consider using a different optocoupler with a higher bandwidth.
  • Use ESD protection devices, such as TVS diodes, and overvoltage protection circuits to prevent damage to the FOD3120SD. Ensure that the device is handled and stored in an ESD-safe environment.
