FOD3120SV - onsemi

Description: High noise immunity characterized by 35kV/µs minimum common mode rejection; 2.5A peak output current driving capability for most 800V/20A IGBT; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Wide supply voltage range from 15V to 30V; Fast switching speed; 400ns max. propagation delay; 100ns max. pulse width distortion; Under-Voltage LockOut (UVLO) with hysteresis; Extended industrial temperate range, -40°C to 100°C temperature range; Safety and regulatory app

Download FOD3120SV Model

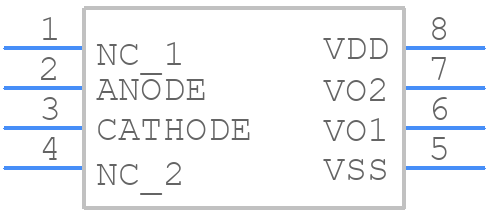

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3120SV - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO_8
click to zoom

FOD3120SV Details

  • Manufacturer Part Number:

    FOD3120SV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed
