FOD3120TSV - onsemi

Description: High noise immunity characterized by 35kV/µs minimum common mode rejection; 2.5A peak output current driving capability for most 800V/20A IGBT; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Wide supply voltage range from 15V to 30V; Fast switching speed; 400ns max. propagation delay; 100ns max. pulse width distortion; Under-Voltage LockOut (UVLO) with hysteresis; Extended industrial temperate range, -40°C to 100°C temperature range; Safety and regulatory app

Download FOD3120TSV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

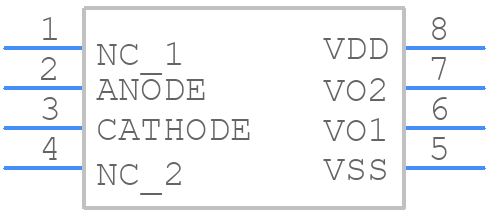

Symbol
FOD3120TSV - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3120TSV - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - FOD3180SDV-2
click to zoom

FOD3120TSV Details

  • Manufacturer Part Number:

    FOD3120TSV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AD

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

FOD3120TSV Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the FOD3120TSV involves keeping the input and output traces as short as possible, using a ground plane to reduce noise, and placing a 0.1uF bypass capacitor between the VCC and GND pins.
  • To ensure proper biasing, connect the VCC pin to a 5V power supply, and the GND pin to the system ground. The photodiode should be connected between the ANODE and CATHODE pins, with the anode connected to the photodiode's positive terminal and the cathode connected to the photodiode's negative terminal.
  • The FOD3120TSV can handle photodiode capacitances up to 100nF. Exceeding this value may affect the device's performance and accuracy.
  • The output voltage of the FOD3120TSV is proportional to the photodiode current. The output voltage can be calculated using the formula: VOUT = (IPD x RFB) / 10, where IPD is the photodiode current and RFB is the feedback resistance.
  • The recommended operating temperature range for the FOD3120TSV is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3120TSV Overview

Use the download button to access the FOD3120TSV schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
