FOD3150 - onsemi

Description: Wide supply voltage range from 15V to 30V; UL1577, 5000 V RMS for 1 min.; Fast switching speed; 300ns max. pulse width distortion; Industrial inverter; Uninterruptible power supply; 500ns max. propagation delay; Safety and regulatory pending approvals; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Isolated IGBT/Power MOSFET gate drive; IEC60747-5-2 (approval pending); >8.0mm clearance and creepage distance (option ‘T’); Under-Voltage LockOut (UVLO) with hyst

Download FOD3150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

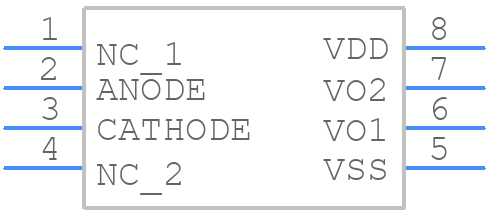

FOD3150 - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3150 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 PDIP
click to zoom
3D Models
FOD3150 - onsemi - 3D model - Dual-In-Line Packages - 8 PDIP
click to zoom

FOD3150 Details

  • Manufacturer Part Number:

    FOD3150

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

FOD3150 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3150 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 0.5V to 2.5V.
  • The FOD3150 can handle a maximum current of 10mA. Exceeding this limit may cause the device to overheat or malfunction.
  • To troubleshoot issues with the FOD3150, check the input voltage, output voltage, and current consumption. Use an oscilloscope to verify the input and output waveforms, and ensure the device is properly biased and connected.
  • The FOD3150 is designed to operate with a 5V power supply. While it may be possible to use it with a 3.3V or 1.8V power supply, it is not recommended as it may affect the device's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3150 Overview

Use the download button to access the FOD3150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
