Part Image

FOD3150S - onsemi

Description: Wide supply voltage range from 15V to 30V; UL1577, 5000 V RMS for 1 min.; Fast switching speed; 300ns max. pulse width distortion; Industrial inverter; Uninterruptible power supply; 500ns max. propagation delay; Safety and regulatory pending approvals; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Isolated IGBT/Power MOSFET gate drive; IEC60747-5-2 (approval pending); >8.0mm clearance and creepage distance (option ‘T’); Under-Voltage LockOut (UVLO) with hyst

Download FOD3150S Model

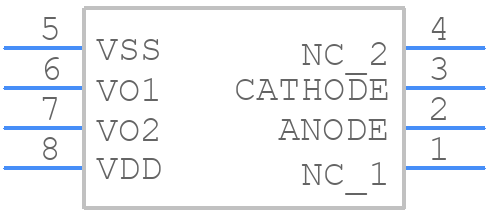

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3150S - onsemi PCB footprint - Other - Other - PDIP8 GW CASE 709AC ISSUE  O
click to zoom

FOD3150S Details

  • Manufacturer Part Number:

    FOD3150S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

FOD3150S Frequently Asked Questions (FAQs)

  • The maximum ambient temperature range for the FOD3150S is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
  • To ensure proper biasing, connect VCC to a 5V power supply, and make sure the input voltage (VIN) is within the recommended range of 3.3V to 5.5V. Also, ensure the output (VOUT) is not loaded with a capacitance greater than 10nF.
  • To minimize EMI and noise, use a multi-layer PCB with a solid ground plane, keep the input and output traces short and separate, and avoid running high-frequency signals near the device. Also, use a 10nF to 100nF bypass capacitor between VCC and GND.
  • Yes, the FOD3150S is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to withstand harsh environmental conditions.
  • To troubleshoot issues, first check the input voltage and ensure it's within the recommended range. Verify the output load is within the specified range and that the output voltage is not exceeding the maximum rating. Also, check for any PCB layout or component issues that may be affecting the device's performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3150S Overview

Use the download button to access the FOD3150S schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
