FOD3150SD - onsemi

Description: Wide supply voltage range from 15V to 30V; UL1577, 5000 V RMS for 1 min.; Fast switching speed; 300ns max. pulse width distortion; Industrial inverter; Uninterruptible power supply; 500ns max. propagation delay; Safety and regulatory pending approvals; Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail; Isolated IGBT/Power MOSFET gate drive; IEC60747-5-2 (approval pending); >8.0mm clearance and creepage distance (option ‘T’); Under-Voltage LockOut (UVLO) with hyst

Download FOD3150SD Model

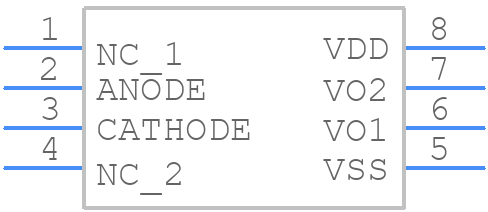

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3150SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O
click to zoom
3D Models
FOD3150SD - onsemi  - 3D model - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O
click to zoom

FOD3150SD Details

  • Manufacturer Part Number:

    FOD3150SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Response Time-Nom:

    6e-8 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

FOD3150SD Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3150SD involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to 5V.
  • The FOD3150SD can handle a maximum current of 100mA. Exceeding this limit may cause the device to overheat or malfunction.
  • To protect the FOD3150SD from ESD, handle the device by the body or use an anti-static wrist strap, and store the device in an anti-static bag or container.
  • The FOD3150SD operates over a temperature range of -40°C to 125°C. Operating the device outside this range may affect its performance or reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3150SD Overview

Use the download button to access the FOD3150SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
