Part Image

FOD3180 - onsemi

Description: 30 ns typ. pulse width distortion; Under voltage lockout protection (UVLO) withhysteresis; Guaranteed operating temperature range of -40°C to+100°C; 250 kHz maximum switching speed; 2 A minimum peak output current; Minimum clearance distance of 7.0 mm; C-UL, UL and VDE* safety agency approvals pending; 5000Vrms, 1 minute isolation; Wide VCCoperating range: 10 V to 20 V; 10 kV/m minimum common mode rejection; Minimum creepage distance of 7.0 mm; High-speed response: 200 ns max propagation delayover temperatu

Download FOD3180 Model

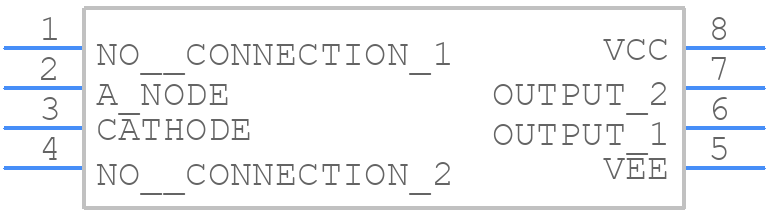

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3180 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - FOD3180-1
click to zoom
3D Models
FOD3180 - onsemi  - 3D model - Dual-In-Line Packages - FOD3180-1
click to zoom

FOD3180 Details

  • Manufacturer Part Number:

    FOD3180

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    7.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD3180 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3180 involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce noise and EMI.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 0.5V to 2.5V.
  • The FOD3180 can operate up to 50 kHz, but the maximum frequency of operation depends on the specific application and the quality of the input signal.
  • The output of the FOD3180 is an open-drain output, so it requires a pull-up resistor to a positive voltage rail. The value of the pull-up resistor depends on the specific application and the required output current.
  • The FOD3180 is rated for operation up to 85°C, but it can be used in high-temperature applications with proper derating and thermal management.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3180 Overview

Use the download button to access the FOD3180 schematic symbol, PCB footprint, and 3D model.
