FOD3180S - onsemi

Description: 30 ns typ. pulse width distortion; Under voltage lockout protection (UVLO) withhysteresis; Guaranteed operating temperature range of -40°C to+100°C; 250 kHz maximum switching speed; 2 A minimum peak output current; Minimum clearance distance of 7.0 mm; C-UL, UL and VDE* safety agency approvals pending; 5000Vrms, 1 minute isolation; Wide VCCoperating range: 10 V to 20 V; 10 kV/m minimum common mode rejection; Minimum creepage distance of 7.0 mm; High-speed response: 200 ns max propagation delayover temperatu

Download FOD3180S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

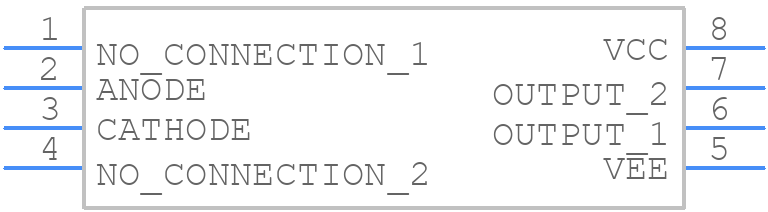

FOD3180S - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3180S - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - soic-ren4
click to zoom
3D Models
FOD3180S - onsemi - 3D model - Small Outline Packages - soic-ren4
click to zoom

FOD3180S Details

  • Manufacturer Part Number:

    FOD3180S

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    SURFACE MOUNT PACKAGE-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.5

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    7.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD3180S Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output circuits separate, use a ground plane, and minimize the loop area of the input and output circuits to reduce EMI.
  • The FOD3180S requires a minimum voltage of 1.4V to 5.5V on the input side and a minimum current of 1mA to 20mA on the output side. Ensure the input voltage and current are within these ranges for optimal performance.
  • The FOD3180S is rated for operation from -40°C to 100°C. Operating the device outside this range may affect its performance and reliability.
  • Use a voltage limiter or a transient voltage suppressor (TVS) to protect the FOD3180S from voltage spikes and surges. Also, ensure the device is operated within its recommended voltage and current ratings.
  • The FOD3180S has a bandwidth of up to 25 kHz. While it can be used in high-frequency applications, its performance may degrade at frequencies above 10 kHz. Consider using a faster optocoupler or a different isolation technology for high-frequency applications.
