Part Image

FOD3180SD - onsemi

Description: 30 ns typ. pulse width distortion; Under voltage lockout protection (UVLO) withhysteresis; Guaranteed operating temperature range of -40°C to+100°C; 250 kHz maximum switching speed; 2 A minimum peak output current; Minimum clearance distance of 7.0 mm; C-UL, UL and VDE* safety agency approvals pending; 5000Vrms, 1 minute isolation; Wide VCCoperating range: 10 V to 20 V; 10 kV/m minimum common mode rejection; Minimum creepage distance of 7.0 mm; High-speed response: 200 ns max propagation delayover temperatu

Download FOD3180SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

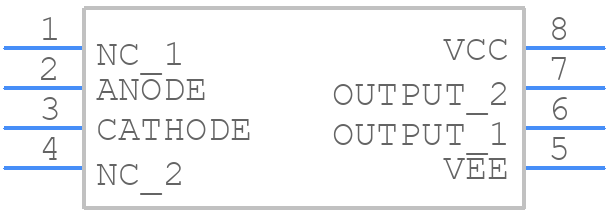

Symbol
FOD3180SD - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3180SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 6N136SDM-1
click to zoom
3D Models
FOD3180SD - onsemi - 3D model - Small Outline Packages - 6N136SDM-1
click to zoom

FOD3180SD Details

  • Manufacturer Part Number:

    FOD3180SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    SURFACE MOUNT PACKAGE-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7.5

FOD3180SD Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3180SD involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to 2.5V.
  • The FOD3180SD can sink or source up to 10mA of current, making it suitable for driving small loads such as LEDs or logic gates.
  • To protect the FOD3180SD from ESD, handle the device by the body or use an anti-static wrist strap, and ensure that the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
  • The FOD3180SD is rated to operate from -40°C to 85°C, making it suitable for use in a wide range of applications, from industrial control systems to automotive systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3180SD Overview

Use the download button to access the FOD3180SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
