FOD3180SDV - onsemi

Description: 30 ns typ. pulse width distortion; Under voltage lockout protection (UVLO) withhysteresis; Guaranteed operating temperature range of -40°C to+100°C; 250 kHz maximum switching speed; 2 A minimum peak output current; Minimum clearance distance of 7.0 mm; C-UL, UL and VDE* safety agency approvals pending; 5000Vrms, 1 minute isolation; Wide VCCoperating range: 10 V to 20 V; 10 kV/m minimum common mode rejection; Minimum creepage distance of 7.0 mm; High-speed response: 200 ns max propagation delayover temperatu

Download FOD3180SDV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

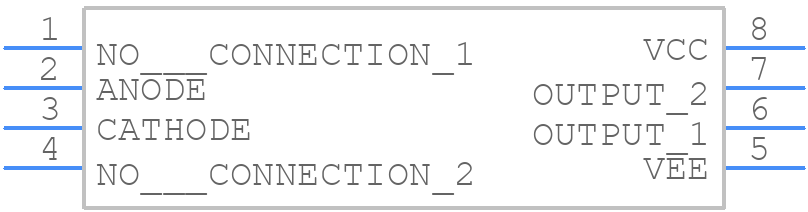

FOD3180SDV - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3180SDV - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - FOD3180SDV-1
click to zoom

FOD3180SDV Details

  • Manufacturer Part Number:

    FOD3180SDV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Package Description:

    SURFACE MOUNT PACKAGE-8

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7.5

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    7.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD3180SDV Frequently Asked Questions (FAQs)

  • A symmetrical, compact layout with minimal trace lengths and widths is recommended. Keep the input and output traces separate and avoid crossing them to minimize crosstalk.
  • Use a stable, low-ESR power supply, and ensure the device is properly heatsinked. Also, follow the recommended operating conditions and derating guidelines.
  • The maximum allowable voltage on the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation.
  • Yes, the FOD3180SDV has a high common-mode rejection ratio (CMRR) and can operate in noisy environments. However, proper shielding, grounding, and layout techniques are still essential.
  • Check the power supply, input signals, and output loads. Verify the device is properly soldered and the PCB layout is correct. Use an oscilloscope to inspect the input and output signals.
