The recommended PCB layout for the FOD3180SV involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, the FOD3180SV has a built-in thermal shutdown feature that will turn off the device if the junction temperature exceeds 150°C.
The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage can cause permanent damage to the device. It's recommended to use a voltage regulator or a voltage clamp to ensure that the voltage on the VCC pin does not exceed the maximum rating.
To troubleshoot issues with the FOD3180SV, start by checking the input and output voltages, as well as the current consumption. Verify that the device is properly powered and that the input and output pins are not shorted. Use an oscilloscope to check for any unusual waveforms or noise on the output. If the issue persists, consult the onsemi application note AN5191 for troubleshooting guidelines.
Yes, the FOD3180SV is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free soldering techniques. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD3180SV Overview

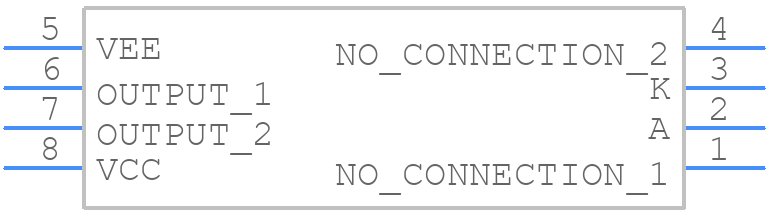

Use the download button to access the FOD3180SV schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31,
or try a keyword search, such as Optocoupler
