FOD3180TV - onsemi

Description: 30 ns typ. pulse width distortion; Under voltage lockout protection (UVLO) withhysteresis; Guaranteed operating temperature range of -40°C to+100°C; 250 kHz maximum switching speed; 2 A minimum peak output current; Minimum clearance distance of 7.0 mm; C-UL, UL and VDE* safety agency approvals pending; 5000Vrms, 1 minute isolation; Wide VCCoperating range: 10 V to 20 V; 10 kV/m minimum common mode rejection; Minimum creepage distance of 7.0 mm; High-speed response: 200 ns max propagation delayover temperatu

Download FOD3180TV Model

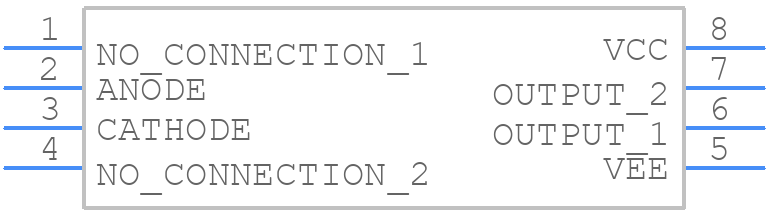

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3180TV - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 6.6x3.81, 2.54P CASE 646BW ISSUE O
click to zoom
3D Models
FOD3180TV - onsemi  - 3D model - Dual-In-Line Packages - PDIP8 6.6x3.81, 2.54P CASE 646BW ISSUE O
click to zoom

FOD3180TV Details

  • Manufacturer Part Number:

    FOD3180TV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646BW

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Response Time-Nom:

    7.5e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD3180TV Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3180TV involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 0.5V to 5V.
  • The maximum current rating of the FOD3180TV output is 50mA. Exceeding this rating may cause damage to the device or affect its reliability.
  • When the FOD3180TV is not in use, it's recommended to tri-state the output by setting the OE (output enable) pin low. This helps reduce power consumption and prevent unwanted output signals.
  • The recommended operating temperature range for the FOD3180TV is -40°C to 85°C. Operating outside this range may affect the device's performance or reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3180TV Overview

Use the download button to access the FOD3180TV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
