FOD3182 - onsemi

Description: 250kHZ maximum switching speed; UL and VDE (requires 'V' ordering option) approved; Minimum clearance distance of 10.0mm to 16mm (Option TV or TSV); Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving MOSFETs; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); 65ns max. pulse width distortion; 5,000Vrms, 1 minute isolation; High noise immunity characterized by 50kV/µs (Typical) common m

Download FOD3182 Model

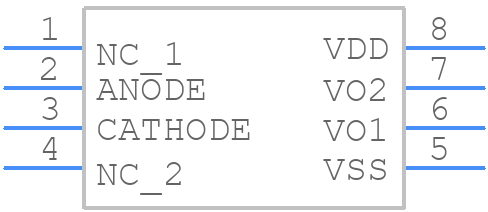

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3182 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - FOD3182
click to zoom
3D Models
FOD3182 - onsemi  - 3D model - Dual-In-Line Packages - FOD3182
click to zoom

FOD3182 Details

  • Manufacturer Part Number:

    FOD3182

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.016 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.295 W

  • Response Time-Nom:

    3.8e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN
