FOD3182SD - onsemi

Description: 250kHZ maximum switching speed; UL and VDE (requires 'V' ordering option) approved; Minimum clearance distance of 10.0mm to 16mm (Option TV or TSV); Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving MOSFETs; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); 65ns max. pulse width distortion; 5,000Vrms, 1 minute isolation; High noise immunity characterized by 50kV/µs (Typical) common m

Download FOD3182SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

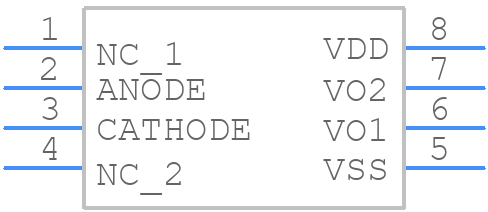

FOD3182SD - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3182SD - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW-D
click to zoom

FOD3182SD Details

  • Manufacturer Part Number:

    FOD3182SD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.016 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.295 W

  • Response Time-Nom:

    3.8e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

FOD3182SD Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3182SD involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 0.5V to 2.5V.
  • The maximum current rating for the FOD3182SD is 10mA. Exceeding this rating may cause damage to the device or affect its performance.
  • To prevent electrostatic discharge (ESD) damage, handle the FOD3182SD by the body, avoid touching the pins, and use an ESD wrist strap or mat when handling the device.
  • The recommended operating temperature range for the FOD3182SD is -40°C to 85°C. Operating outside this range may affect the device's performance or reliability.
