FOD3182SDV - onsemi

Description: 250kHZ maximum switching speed; UL and VDE (requires 'V' ordering option) approved; Minimum clearance distance of 10.0mm to 16mm (Option TV or TSV); Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving MOSFETs; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); 65ns max. pulse width distortion; 5,000Vrms, 1 minute isolation; High noise immunity characterized by 50kV/µs (Typical) common m

Download FOD3182SDV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

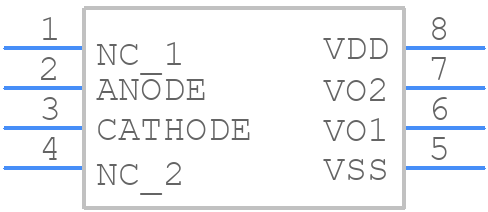

Symbol
FOD3182SDV - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3182SDV - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP8 GW CASE 709AC ISSUE O_2024
click to zoom

FOD3182SDV Details

  • Manufacturer Part Number:

    FOD3182SDV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.016 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.295 W

  • Response Time-Nom:

    3.8e-8 ns

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

FOD3182SDV Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3182SDV involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to 2.5V.
  • The maximum allowable current through the output pins of the FOD3182SDV is 10mA. Exceeding this limit may cause damage to the device.
  • When the input is floating or undefined, the FOD3182SDV's output will be in a high-impedance state. To avoid unwanted behavior, it's recommended to use a pull-up or pull-down resistor on the input pin to define the input state.
  • The recommended operating temperature range for the FOD3182SDV is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FOD3182SDV Overview

Use the download button to access the FOD3182SDV schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31, or try a keyword search, such as Optocoupler
