Description:250kHZ maximum switching speed; UL and VDE (requires 'V' ordering option) approved; Minimum clearance distance of 10.0mm to 16mm (Option TV or TSV); Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving MOSFETs; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); 65ns max. pulse width distortion; 5,000Vrms, 1 minute isolation; High noise immunity characterized by 50kV/µs (Typical) common m
A good PCB layout for the FOD3182TV involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the photodiode and the amplifier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the application note AN-1151.
To ensure proper biasing, the FOD3182TV requires a supply voltage (VCC) between 4.5V and 5.5V, and a bias voltage (VBIAS) between 2.5V and 3.5V. The bias voltage should be set to around 2.8V for optimal performance. It's also essential to ensure that the input voltage (VIN) is within the recommended range of 0V to 2.5V.
The FOD3182TV is rated for operation in an ambient temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance.
The FOD3182TV has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-safe tools. Additionally, it's recommended to use a voltage limiter or a TVS diode on the input lines to protect the device from voltage spikes and transients.
The FOD3182TV is designed to operate with input signal frequencies up to 50 kHz. However, the device's bandwidth can be affected by the input signal amplitude, and it's recommended to operate it with input signal frequencies below 20 kHz for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD3182TV Overview

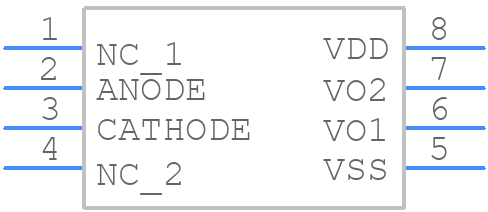

Use the download button to access the FOD3182TV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD31,
or try a keyword search, such as Optocoupler
