FOD3184 - onsemi

Description: 3A minimum peak output current for medium power MOSFET/IGBT; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); Safety and regulatory approvals; Guaranteed operating temperature range of -40°C to 100°C; Minimum clearance distance of 8.0mm (Option T); Fast switching speed; Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving IGBTs; Minimum insulation thickness of 0.5mm; IEC60747-5-2, 1,41

Download FOD3184 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

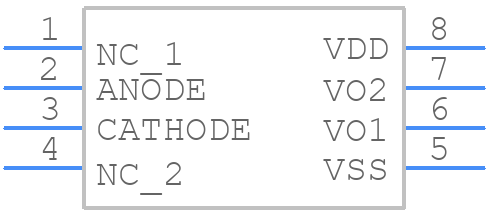

FOD3184 - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD3184 - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - FOD3184
click to zoom
3D Models
FOD3184 - onsemi - 3D model - Dual-In-Line Packages - FOD3184
click to zoom

FOD3184 Details

  • Manufacturer Part Number:

    FOD3184

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8

  • Package Description:

    DIP-8

  • Manufacturer Package Code:

    646CQ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.016 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Nom:

    3.8e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD3184 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3184 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the photodiode and the amplifier. A 4-layer PCB with a dedicated ground plane is recommended.
  • The FOD3184 requires a bias voltage of 5V to 24V. Ensure the bias voltage is stable and noise-free, and that the bias resistor is chosen to provide the recommended 10mA to 20mA of bias current.
  • The FOD3184 is rated for operation from -40°C to 85°C. However, optimal performance is achieved between 0°C to 70°C. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • The FOD3184 is an ESD-sensitive device. Handle the device with ESD-protective equipment, such as wrist straps and mats, and ensure the PCB is properly grounded during assembly and testing.
  • Use a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. Avoid wave soldering or hand soldering, as this can damage the device.
