FOD3184SDV - onsemi

Description: 3A minimum peak output current for medium power MOSFET/IGBT; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); Safety and regulatory approvals; Guaranteed operating temperature range of -40°C to 100°C; Minimum clearance distance of 8.0mm (Option T); Fast switching speed; Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving IGBTs; Minimum insulation thickness of 0.5mm; IEC60747-5-2, 1,41

Download FOD3184SDV Model

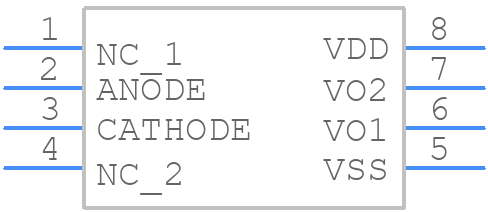

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD3184SDV - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SMD-DIP-8
click to zoom
3D Models
FOD3184SDV - onsemi  - 3D model - Small Outline Packages - SMD-DIP-8
click to zoom

FOD3184SDV Details

  • Manufacturer Part Number:

    FOD3184SDV

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-8 GW

  • Manufacturer Package Code:

    709AC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.016 A

  • Forward Voltage-Max:

    1.8 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Nom:

    3.8e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

FOD3184SDV Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD3184SDV involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range of 0.5V to 2.5V.
  • The FOD3184SDV can operate up to 50 MHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout.
  • The open-drain output of the FOD3184SDV requires a pull-up resistor to a voltage rail (e.g., 5V) to function correctly. The value of the pull-up resistor depends on the specific application and the desired rise time.
  • The FOD3184SDV is rated for operation from -40°C to 85°C, but it's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
