Description:3A minimum peak output current for medium power MOSFET/IGBT; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); Safety and regulatory approvals; Guaranteed operating temperature range of -40°C to 100°C; Minimum clearance distance of 8.0mm (Option T); Fast switching speed; Fast output rise/fall time; Under voltage lockout protection (UVLO) with hysteresis - optimized for driving IGBTs; Minimum insulation thickness of 0.5mm; IEC60747-5-2, 1,41
A good PCB layout for the FOD3184TV involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the photodiode and the amplifier. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the application note AN-1151.
To ensure proper biasing, it's essential to follow the recommended biasing circuit shown in the datasheet. The VCC pin should be connected to a stable 5V power supply, and the VEE pin should be connected to a stable -5V power supply. The recommended bias resistor values are 1 kΩ for R1 and 2 kΩ for R2. Additionally, it's crucial to ensure that the input voltage is within the recommended range of 0V to 2.5V.
The FOD3184TV is rated for operation over an ambient temperature range of -40°C to 85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
Yes, the FOD3184TV is designed for high-speed applications and can operate at speeds up to 50 Mbps. However, it's essential to ensure that the PCB layout and signal routing are optimized for high-speed operation, and that the input signal is properly terminated to minimize reflections and ringing.
To troubleshoot issues with the FOD3184TV, start by verifying that the device is properly biased and that the input signal is within the recommended range. Check the PCB layout for any issues, such as signal routing or termination problems. Use an oscilloscope to verify the input and output signals, and check for any signs of oscillation or instability. If the issue persists, consult the application note AN-1151 for additional troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD3184TV Overview

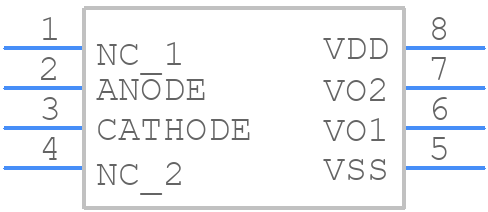

Use the download button to access the FOD3184TV schematic symbol, PCB footprint, and 3D model.
