FOD8316 - onsemi

Description: Wide supply voltage range from 15V to 30V; 2.5A peak output current driving capability for most 1200V/150A IGBT; User configurable: inverting, non-inverting, auto-reset, auto-shutdown; Under voltage lockout protection; 3.3V/5V, CMOS/TTL compatible inputs; High Speed; 1,414V (peak) working voltage rating; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); RDS(ON) of 1 Ω (typ.) offers lower power dissipation; 8mm creepage and clearance distanc

Download FOD8316 Model
Schematic

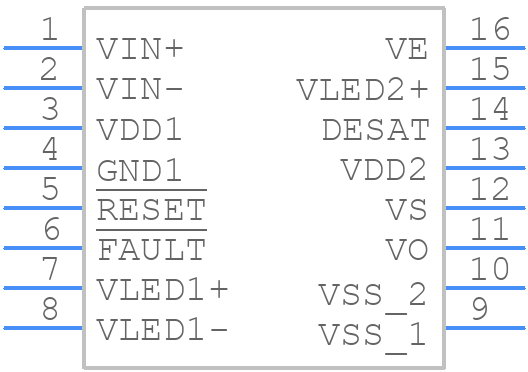

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FOD8316 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - FOD8316
click to zoom
3D Models
FOD8316 - onsemi  - 3D model - Small Outline Packages - FOD8316
click to zoom

FOD8316 Details

  • Manufacturer Part Number:

    FOD8316

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOP-16

  • Manufacturer Package Code:

    751EN

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.312 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    3.911 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.5 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    7.493 mm

FOD8316 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD8316 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the photodiode and the amplifier. A 4-layer PCB with a dedicated ground plane is recommended.
  • The FOD8316 requires a bias voltage of 5V to 24V. Ensure the bias voltage is stable and noise-free, and that the bias resistor is chosen to provide the recommended 10mA to 20mA of bias current.
  • The FOD8316 is rated for operation from -40°C to 85°C. However, optimal performance is achieved between 0°C to 70°C. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • The FOD8316 is an ESD-sensitive device. Handle the device with an ESD wrist strap or mat, and ensure all equipment is grounded. Avoid touching the device pins or handling the device in environments with high electrostatic charges.
  • Store the FOD8316 in its original packaging or an anti-static bag. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures. Handle the device by the body, not the pins, and avoid bending or flexing the leads.
