Description:Wide supply voltage range from 15V to 30V; 2.5A peak output current driving capability for most 1200V/150A IGBT; User configurable: inverting, non-inverting, auto-reset, auto-shutdown; Under voltage lockout protection; 3.3V/5V, CMOS/TTL compatible inputs; High Speed; 1,414V (peak) working voltage rating; Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail (rail-to-rail output); RDS(ON) of 1 Ω (typ.) offers lower power dissipation; 8mm creepage and clearance distanc
A good PCB layout for the FOD8316V involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the photodiode. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed in a quiet area of the board, away from high-frequency signals and noise sources.
The FOD8316V requires a bias voltage of 5V ± 10% to operate correctly. Ensure that the power supply is stable and noise-free, and that the voltage regulator is capable of providing a clean 5V output. Additionally, the bias voltage should be applied before the input signal to prevent damage to the device.
The FOD8316V can handle photodiode capacitances up to 100 pF. Exceeding this value may affect the device's performance and stability. It's essential to select a photodiode with a capacitance within the recommended range to ensure optimal performance.
To troubleshoot issues with the FOD8316V, start by verifying the power supply and bias voltage. Check for proper connections and ensure that the input signal is within the recommended range. Use an oscilloscope to verify the input and output signals. If the issue persists, check the photodiode and its connections, and ensure that it is properly biased and connected to the FOD8316V.
The FOD8316V is rated for operation up to 85°C. While it can tolerate high temperatures, its performance may degrade above 70°C. For high-temperature applications, consider using a thermally-enhanced package or a heat sink to maintain a stable temperature. Always consult the datasheet and onsemi's application notes for specific guidance on high-temperature operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FOD8316V Overview

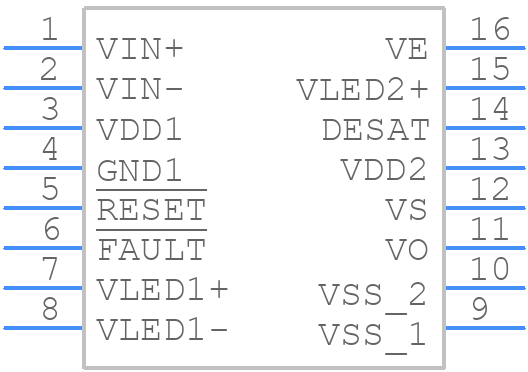

Use the download button to access the FOD8316V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FOD83,
or try a keyword search, such as MOSFET Drivers
