FOD8342TR2V - onsemi

Description: FOD8342T - 8 mm Creepage and Clearance Distance, and 0.4 mm Insulation Distance to Achieve Reliable and High-Voltage Insulation; 3.0 A Peak Output Current Driving Capability for Medium-Power IGBT/MOSFET – Use of P-Channel MOSFETs at Output Stage Enables Output Voltage Swing Close to Supply Rail; 20 kV/µs Minimum Common Mode Rejection; Wide Supply Voltage Range: 10 V to 30 V; Fast Switching Speed Over Full Operating Temperature Range – 210 ns Maximum Propagation Delay – 65 ns Maximum Pulse Width Distortion;

Download FOD8342TR2V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

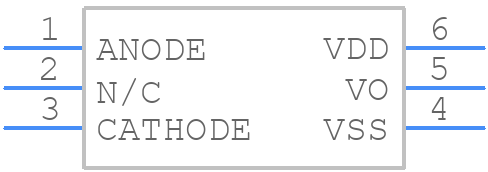

FOD8342TR2V - onsemi - PCB symbol
click to zoom
PCB Footprints
FOD8342TR2V - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC6 W CASE 751EM ISSUE O
click to zoom
3D Models
FOD8342TR2V - onsemi - 3D model - Small Outline Packages - SOIC6 W CASE 751EM ISSUE O
click to zoom

FOD8342TR2V Details

  • Manufacturer Part Number:

    FOD8342TR2V

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC6 W

  • Manufacturer Package Code:

    751EM

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Date Of Intro:

    2017-05-05

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    IEC-60747-5-5, UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Shape:

    RECTANGULAR

  • Supply Voltage-Min:

    10 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

FOD8342TR2V Frequently Asked Questions (FAQs)

  • A good PCB layout for the FOD8342TR2V involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure the input voltage is within the recommended range of 0.5V to 5V.
  • The maximum current rating for the FOD8342TR2V is 100mA per channel. Exceeding this rating may cause damage to the device.
  • To prevent electrostatic discharge (ESD) damage, use an ESD wrist strap or mat, and handle the device by the body or pins, avoiding direct contact with the die.
  • The recommended storage temperature range for the FOD8342TR2V is -40°C to 125°C. Storing the device outside this range may affect its performance or lifespan.
