The maximum operating temperature range for the FP15R06W1E3_B11 is -40°C to 175°C, as specified in the datasheet.
To ensure reliability, follow the recommended thermal management guidelines, such as using a heat sink, optimizing the PCB layout, and ensuring proper airflow. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
The recommended gate drive voltage for the FP15R06W1E3_B11 is between 10V and 15V, as specified in the datasheet. However, it's essential to consult the application note and gate driver datasheet for specific recommendations.
Yes, the FP15R06W1E3_B11 is suitable for high-frequency switching applications up to 100 kHz. However, it's crucial to consider the device's switching characteristics, such as rise and fall times, and ensure proper layout and decoupling to minimize parasitic inductances and capacitances.
The internal diode of the FP15R06W1E3_B11 can be handled by using a suitable gate driver that provides a negative voltage to the gate during turn-off, or by using an external diode in parallel with the internal diode to reduce the reverse recovery time.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FP15R06W1E3_B11 Overview

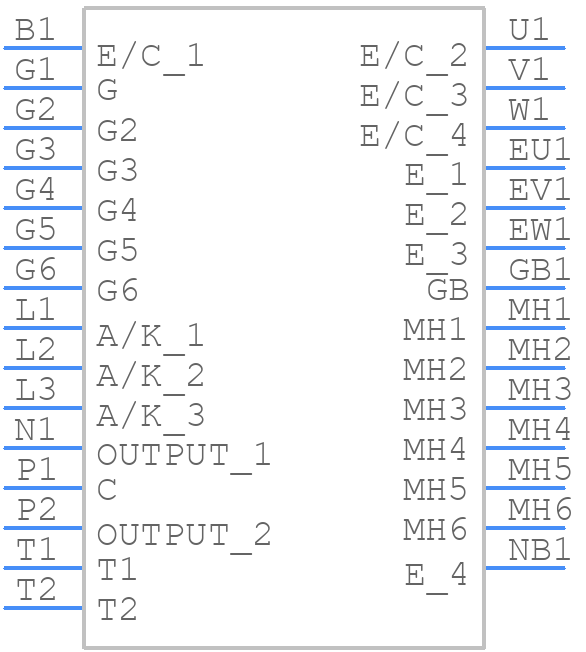

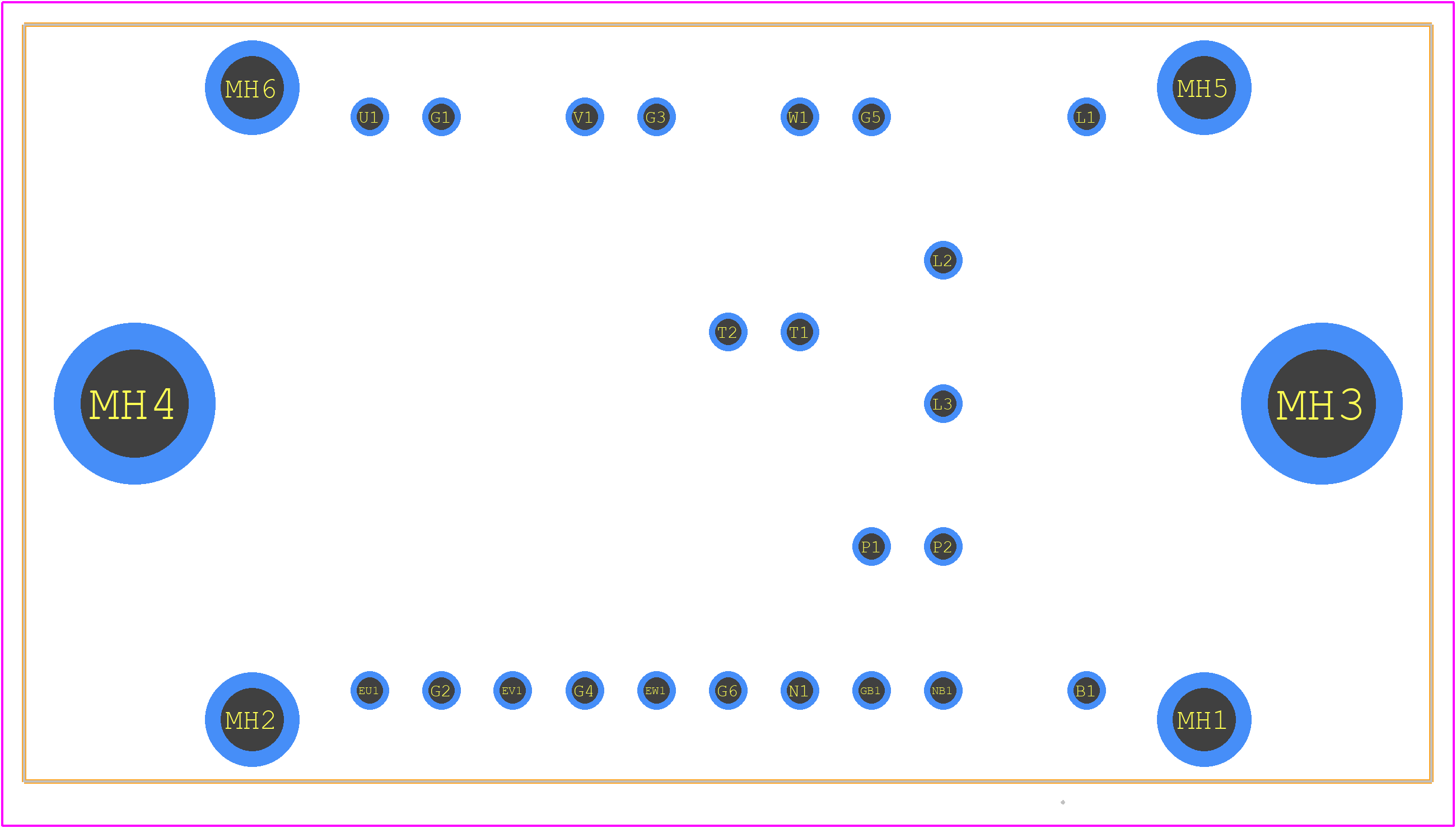

Use the download button to access the FP15R06W1E3_B11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP15R,
or try a keyword search, such as IGBTs
