The thermal resistance (Rth) of the FP35R12W2T4PBPSA1 is typically around 0.35 K/W (junction to case) and 1.5 K/W (junction to ambient) at a maximum junction temperature of 175°C.
Yes, the FP35R12W2T4PBPSA1 is designed for high-reliability applications, such as automotive, industrial, and renewable energy systems, due to its robust design, high-quality manufacturing, and rigorous testing.
To ensure the FP35R12W2T4PBPSA1 operates within its SOA, follow the guidelines in the datasheet, including voltage, current, and power ratings, and consider factors like temperature, switching frequency, and load characteristics.
The recommended gate drive voltage for the FP35R12W2T4PBPSA1 is typically between 10 V and 15 V, with a maximum gate-source voltage of ±20 V.
Yes, the FP35R12W2T4PBPSA1 can be used in a parallel configuration to increase the overall current handling capability, but it's essential to ensure proper synchronization, gate drive, and thermal management to avoid uneven current sharing and thermal runaway.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FP35R12W2T4PBPSA1 Overview

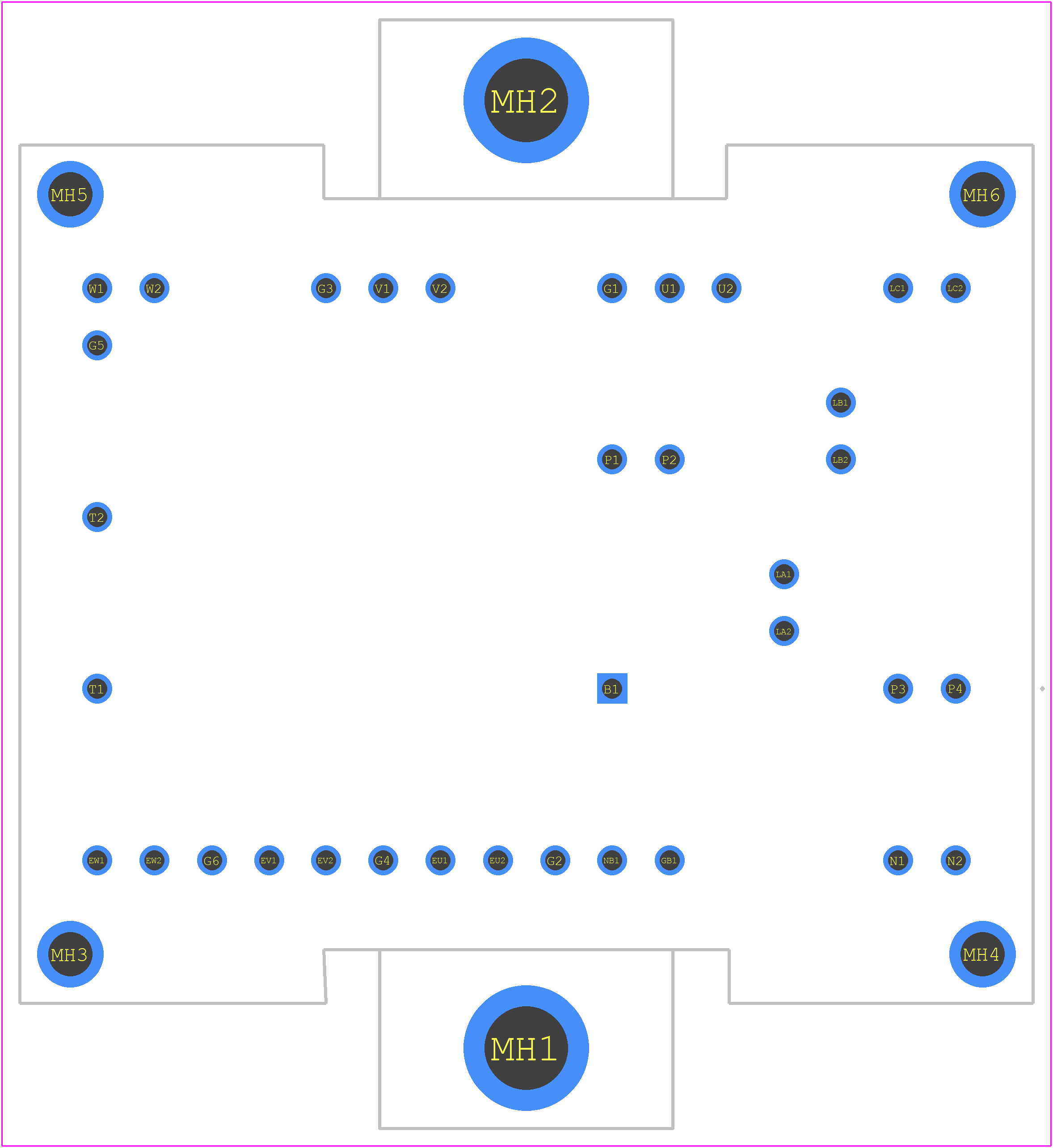

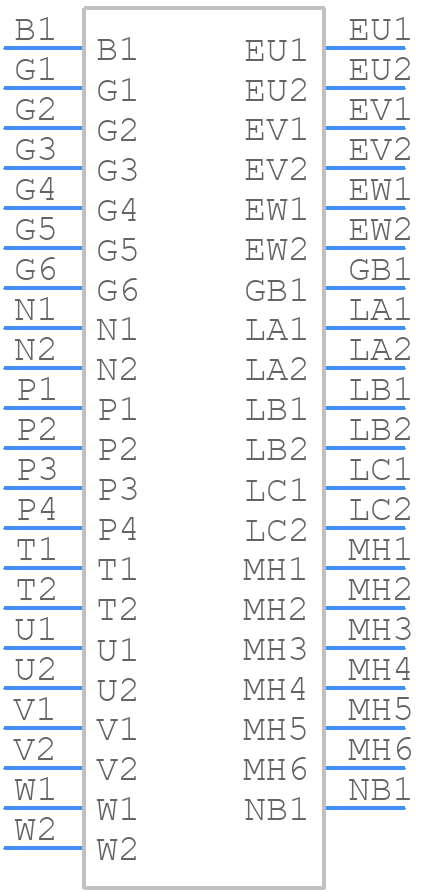

Use the download button to access the FP35R12W2T4PBPSA1 schematic symbol and PCB footprint.
