FP50R06W2E3 footprint, schematic symbol and 3D model by Infineon

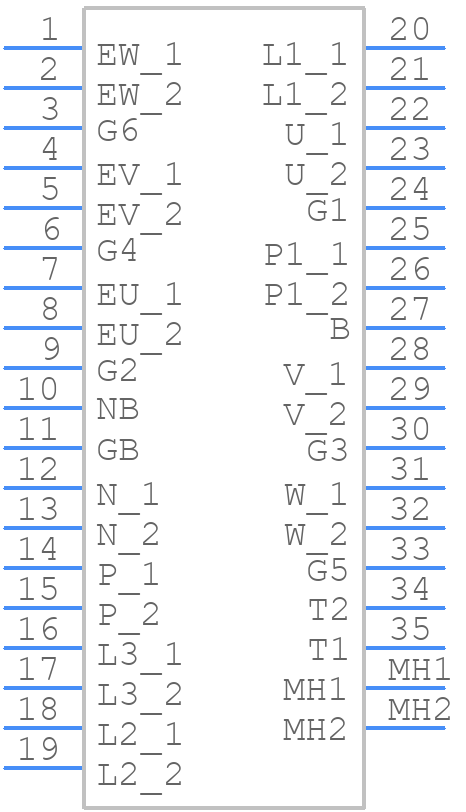

Symbol

click to zoom

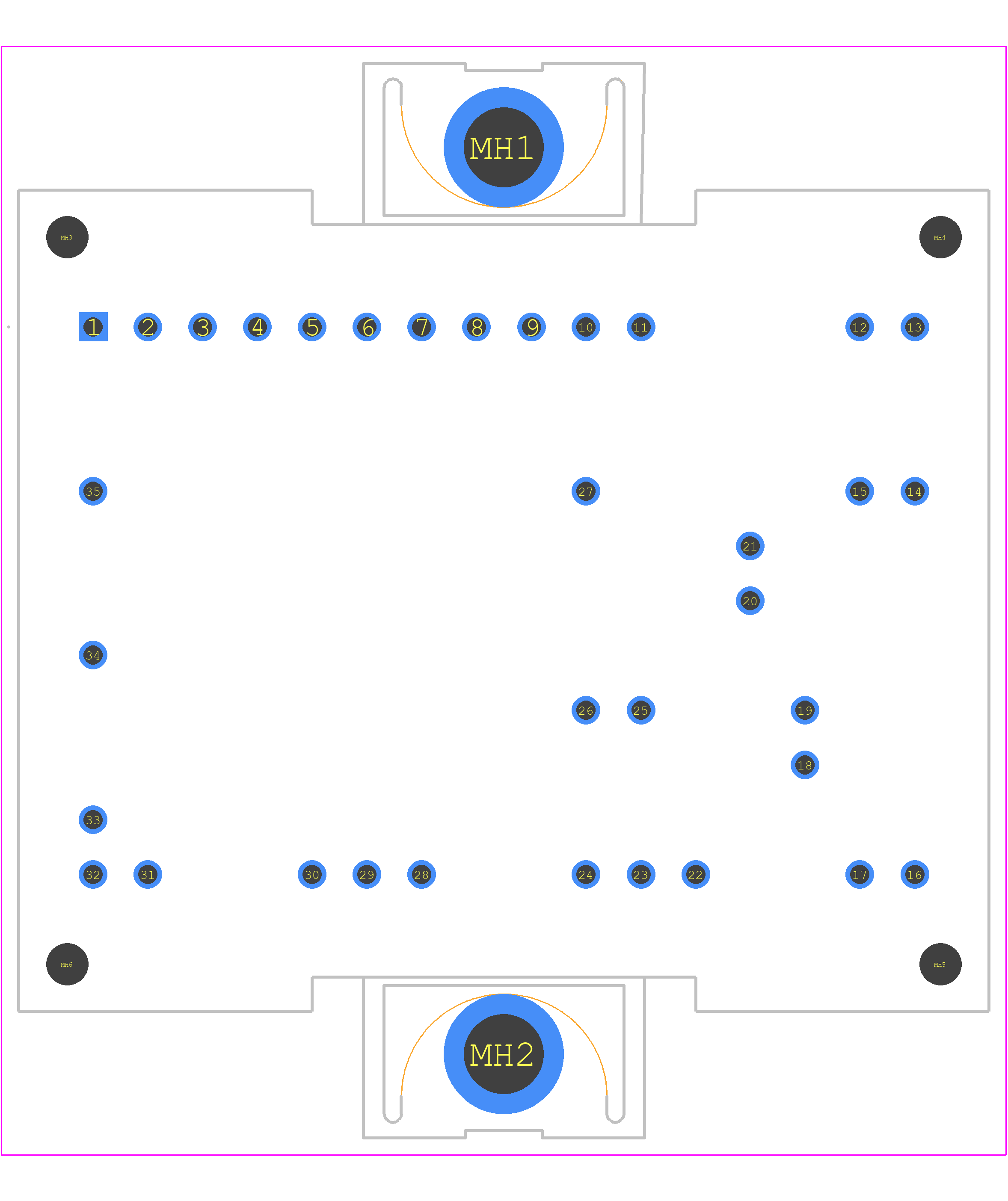

PCB Footprints

FP50R06W2E3 - Infineon PCB footprint - Other - Other - FP50R06W2E3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FP50R06W2E3
Part Number FP50R06W2E3
Manufacturer Infineon
Pin Count 37
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - FP50R06W2E3-1
Released Date Jan 10, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FP50R06W2E3 Details

Manufacturer Part Number:
FP50R06W2E3
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Pin Count:
35
Country Of Origin:
Austria, Germany, Mainland China, Malaysia
ECCN Code:
EAR99
Manufacturer:
Infineon Technologies AG
YTEOL:
5
Case Connection:
ISOLATED
Collector Current-Max (IC):
65 A
Collector-Emitter Voltage-Max:
600 V
Configuration:
COMPLEX
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-XUFM-X35
Number of Elements:
7
Number of Terminals:
35
Operating Temperature-Max:
175 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
175 W
Qualification Status:
Not Qualified
Surface Mount:
NO
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
470 ns
Turn-on Time-Nom (ton):
85 ns
VCEsat-Max:
1.9 V

FP50R06W2E3 Frequently Asked Questions (FAQs)

The maximum junction temperature of the FP50R06W2E3 is 175°C, as specified in the datasheet. However, it's recommended to operate the device at a temperature below 150°C to ensure reliable operation and minimize degradation.
To ensure proper cooling, it's essential to provide a good thermal interface between the device and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
The recommended gate resistor value for the FP50R06W2E3 depends on the specific application and switching frequency. As a general guideline, a gate resistor value between 10 ohms and 22 ohms is suitable for most applications. However, it's recommended to consult the application note or contact Infineon's technical support for specific guidance.
Yes, the FP50R06W2E3 is suitable for high-reliability applications. It's designed and manufactured with high-reliability processes and materials, and it's qualified according to the AEC-Q101 standard for automotive applications. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device operates reliably in the specific application.
To protect the FP50R06W2E3 from overvoltage and overcurrent, it's recommended to use a suitable voltage regulator and overcurrent protection circuitry. Additionally, consider using a TVS (transient voltage suppressor) diode to protect the device from voltage transients and spikes. Consult the datasheet and application notes for specific guidance on protection circuitry.

Trust Checks

Community Provided

System Verified

Community Approved

FP50R06W2E3 Overview

Use the download button to access the FP50R06W2E3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FP50R, or try a keyword search, such as IGBTs
