The maximum operating temperature of the FP50R12KT3 is 150°C, as specified in the datasheet. However, it's recommended to operate the module at a maximum temperature of 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal interface material (TIM) to the base plate of the module, and ensure the heat sink is properly mounted and secured.
The recommended gate resistor value for the FP50R12KT3 is between 10 ohms and 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
Yes, the FP50R12KT3 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched and that the gate drive signals are synchronized to prevent uneven current sharing.
The maximum allowable voltage transient for the FP50R12KT3 is 1200 V, as specified in the datasheet. However, it's recommended to limit the voltage transient to 1000 V or less to ensure reliable operation and prevent damage to the module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FP50R12KT3 Overview

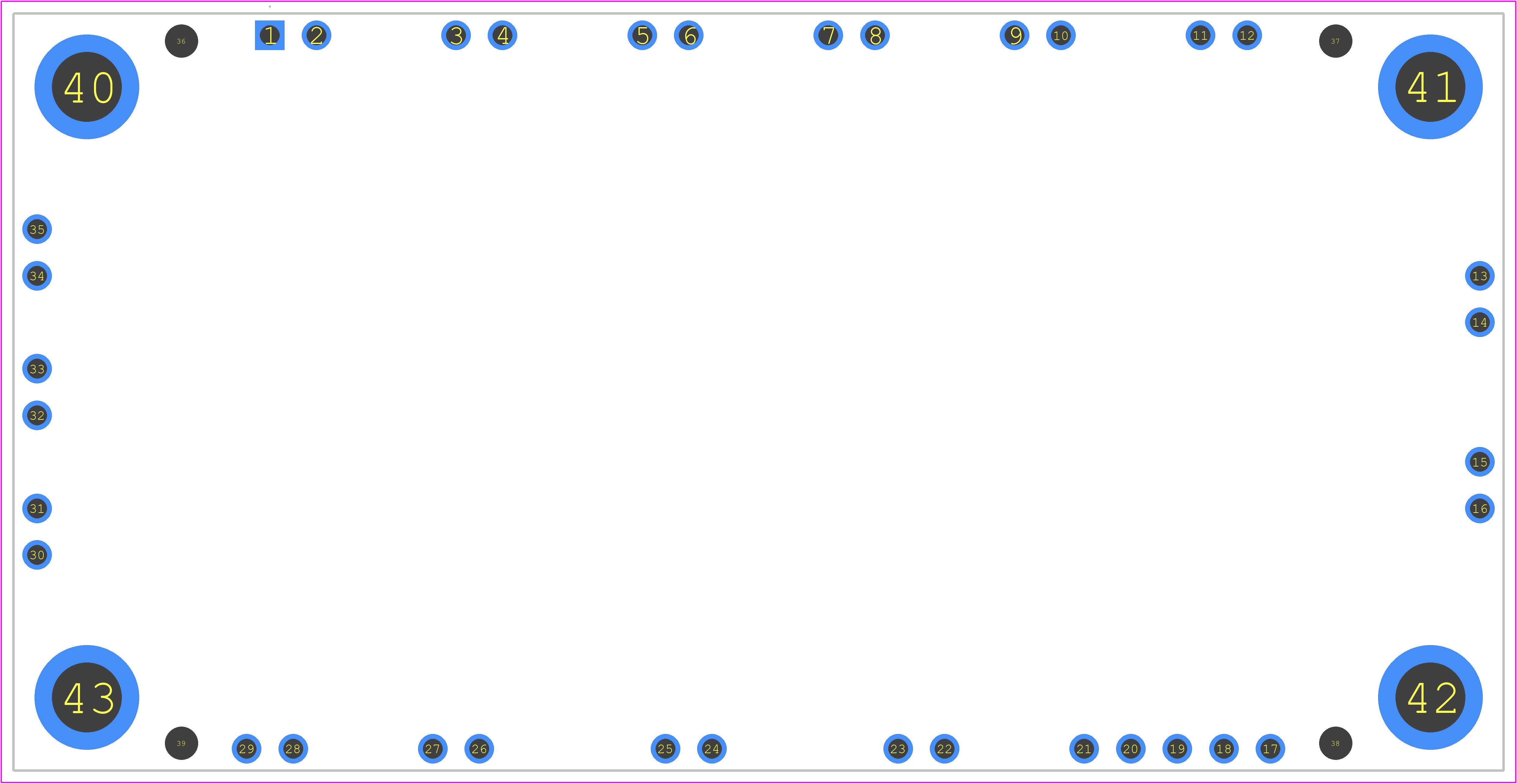

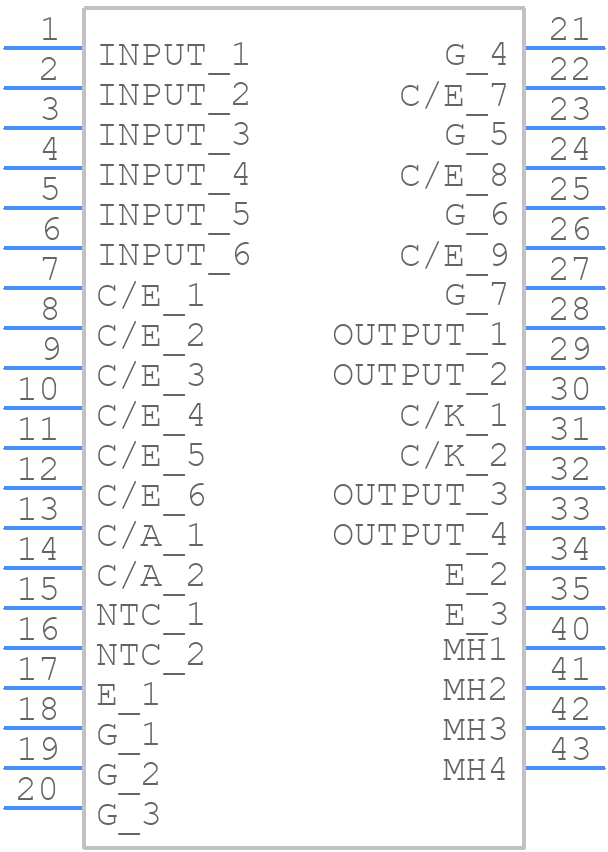

Use the download button to access the FP50R12KT3 schematic symbol, PCB footprint, and 3D model.
