FP50R12KT4 footprint, schematic symbol and 3D model by Infineon

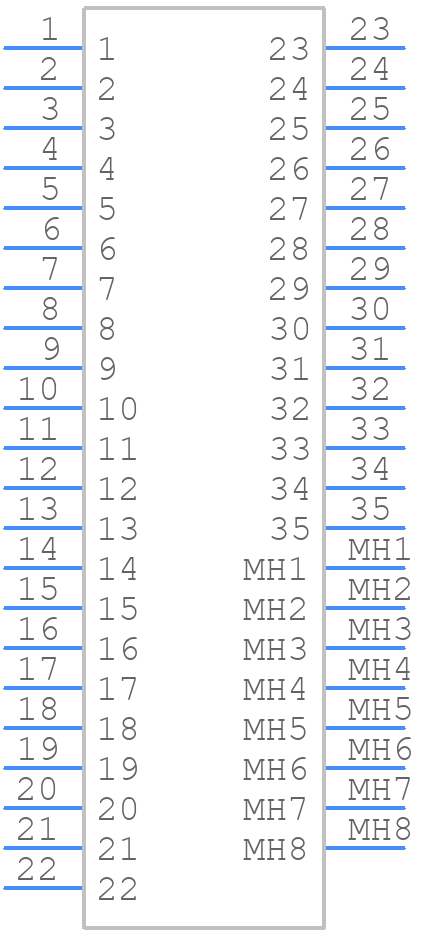

Symbol

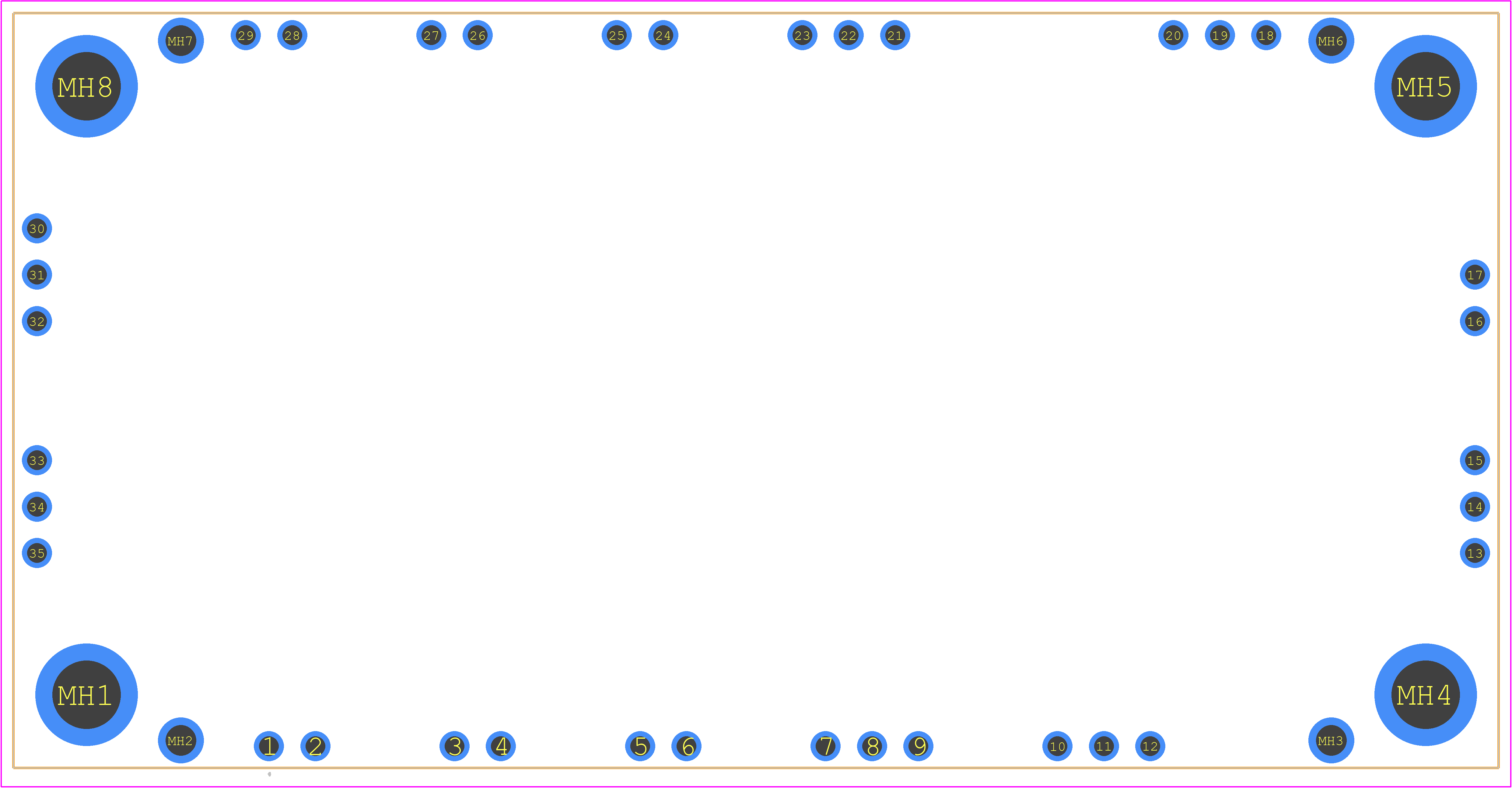

PCB Footprints

3D Models

FP50R12KT4 Details

The maximum operating temperature of the FP50R12KT4 is 150°C, as specified in the datasheet. However, it's recommended to operate the module at a temperature below 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal interface material (TIM) to the base plate of the module, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
The recommended gate resistor value for the FP50R12KT4 is between 10 ohms and 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
Yes, the FP50R12KT4 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched and that the gate drive signals are synchronized to prevent uneven current sharing. Consult the datasheet and application notes for more information on parallel operation.
The maximum allowable voltage transient for the FP50R12KT4 is 1200 V, as specified in the datasheet. However, it's recommended to limit the voltage transient to 1000 V or less to ensure reliable operation and prevent damage to the module.

Expert Contribution

System Verified

Community Approved

Use the download button to access the FP50R12KT4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FP50R, or try a keyword search, such as IGBTs
