FPF2495CUCX - onsemi

Description: Power Switch ICs - Power Distribution 28V OVP/OCP LOAD SWITCH

Download FPF2495CUCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

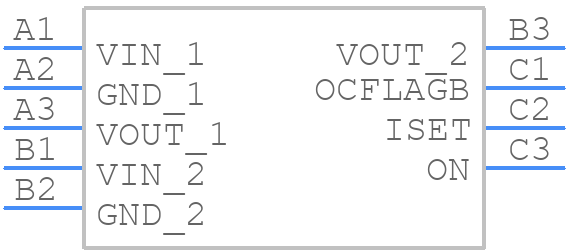

FPF2495CUCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FPF2495CUCX - onsemi PCB footprint - Other - Other - WLCSP9 1.21x1.21x0.586 CASE 567RV ISSUE O
click to zoom
3D Models
FPF2495CUCX - onsemi - 3D model - Other - WLCSP9 1.21x1.21x0.586 CASE 567RV ISSUE O
click to zoom

FPF2495CUCX Details

  • Manufacturer Part Number:

    FPF2495CUCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-9

  • Package Description:

    WLCSP-9

  • Manufacturer Package Code:

    567RV

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Time@Peak Reflow Temperature-Max (s):

    30

FPF2495CUCX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and direct to the heat sink or thermal pad.
  • The FPF2495CUCX requires a 3.3V or 5V power supply, and the EN pin should be tied to a logic high (VCC) to enable the device. Additionally, the VIN pin should be decoupled with a 10uF capacitor to ensure stable operation.
  • The FPF2495CUCX can deliver up to 2.5A per USB port, but the total current draw should not exceed 5A to prevent overheating and ensure reliable operation.
  • The FPF2495CUCX supports USB-C PD mode through the use of an external controller, such as the FUSB302. The device can be configured for PD mode by setting the CC pins to the correct voltage levels and using the I2C interface to configure the PD controller.
  • It's recommended to use external ESD protection devices, such as the NUP2105L, to protect the USB ports from electrostatic discharge. The ESD protection devices should be placed as close as possible to the USB connectors.
