FPF2895VUCX - onsemi

Description: AEC−Q100 Qualified (Grade 2); 28V / 5A Capability; Ultra Low On-Resistance: Typ. 27 mΩ at 5V and 25 °C; Wide Input Voltage Range: 4V ~ 22V; Adjustable Current Limit with external RSET: - 500 mA ~ 5 A; Selectable OVLO with OV1 and OV2 Logic Input: - 5.95 V ± 50 mV - 10 V ± 100 mV - 16.8 V ± 300 mV - 23 V ± 460 mV; Selectable ON Polarity; Selectable Over-Current Behavior: - Auto-Restart Mode - Current Source Mode; True Reverse Current Block; Thermal Shutdown; Open Drain Fault FLAGB Output; UL60950−1 & IEC 609

Download FPF2895VUCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

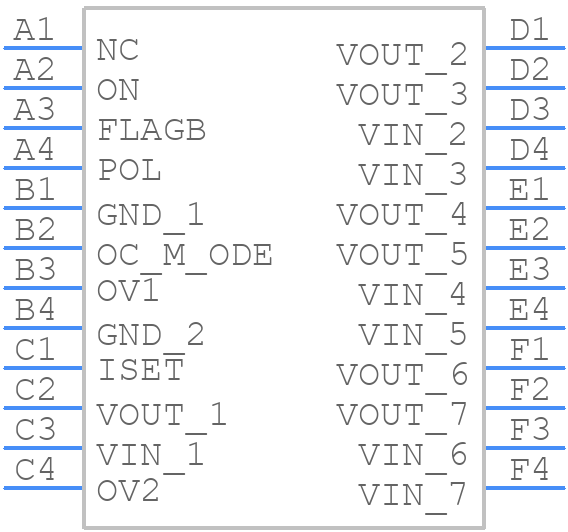

FPF2895VUCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FPF2895VUCX - onsemi PCB footprint - BGA - BGA - WLCSP24 2.6x1.67x0.612 CASE 567TQ ISSUE O
click to zoom
3D Models
FPF2895VUCX - onsemi - 3D model - BGA - WLCSP24 2.6x1.67x0.612 CASE 567TQ ISSUE O
click to zoom

FPF2895VUCX Details

  • Manufacturer Part Number:

    FPF2895VUCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-24

  • Package Description:

    WLCSP-24

  • Manufacturer Package Code:

    567TQ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    R-XBGA-B24

  • JESD-609 Code:

    e1

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA24,4X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.612 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.67 mm
