FQD6N50CTM - onsemi

FQD6N50CTM Details

• Manufacturer Part Number:

  FQD6N50CTM

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

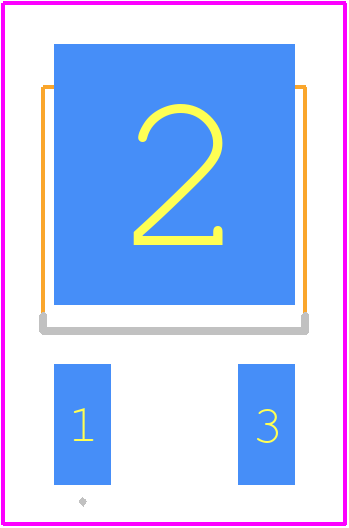

• Part Package Code:

  DPAK-3 / TO-252-3

• Package Description:

  DPAK-3/2

• Manufacturer Package Code:

  369AS

• ECCN Code:

  EAR99

• Factory Lead Time:

  111 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Avalanche Energy Rating (Eas):

  300 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  500 V

• Drain Current-Max (ID):

  4.5 A

• Drain-source On Resistance-Max:

  1.2 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  20 pF

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  61 W

• Pulsed Drain Current-Max (IDM):

  18 A

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON

• Turn-off Time-Max (toff):

  220 ns

• Turn-on Time-Max (ton):

  110 ns
