FS10R06VE3B2BOMA1 - Infineon

Description: Trans IGBT Module N-CH 600V 16A 50000mW 15-Pin EASY750-1 Tray

Download FS10R06VE3B2BOMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

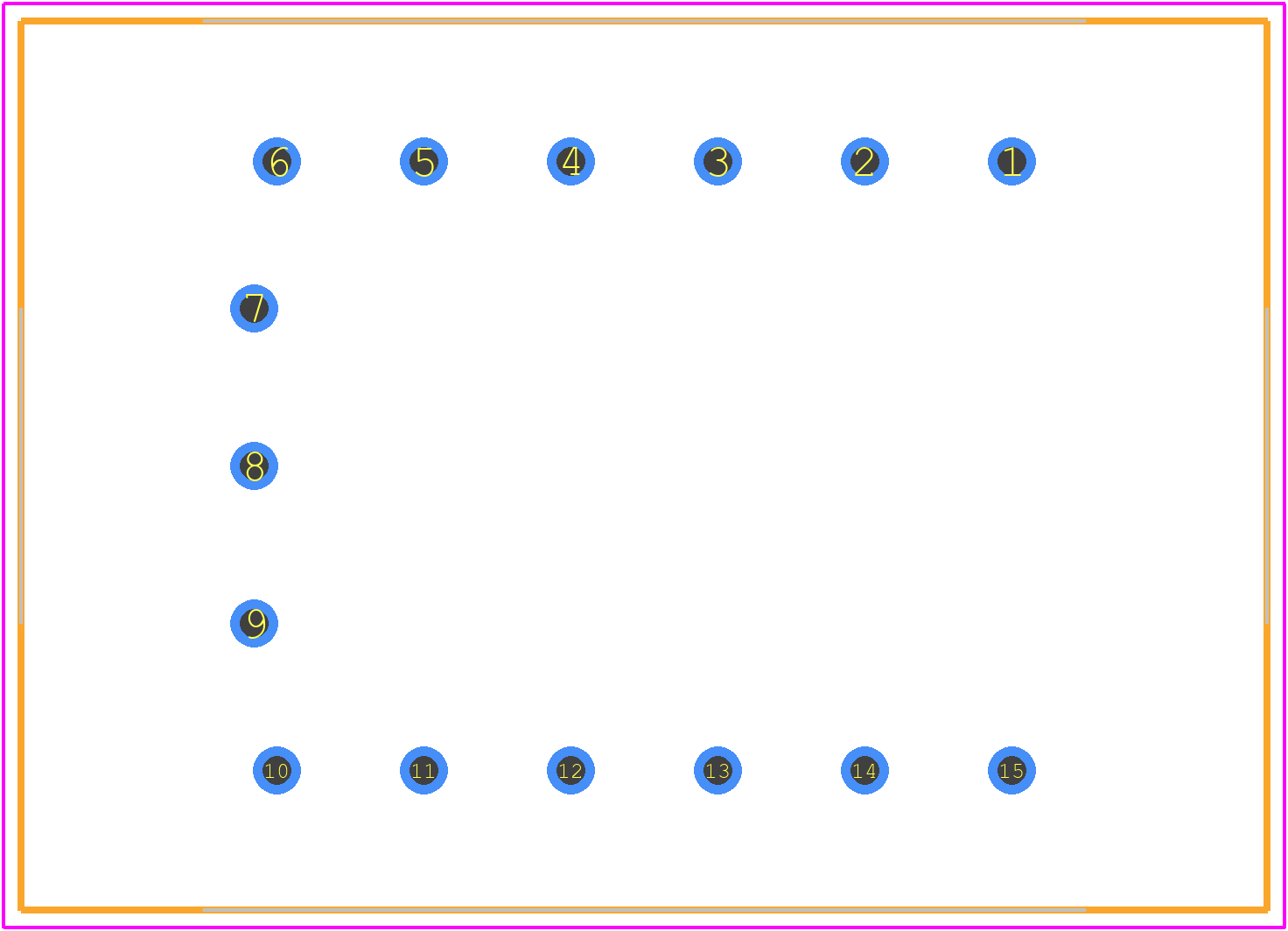

FS10R06VE3B2BOMA1 - Infineon PCB footprint - Other - Other - FS10R06VE3B2BOMA1-4
click to zoom
3D Models
FS10R06VE3B2BOMA1 - Infineon  - 3D model - Other - FS10R06VE3B2BOMA1-4
click to zoom

FS10R06VE3B2BOMA1 Details

  • Manufacturer Part Number:

    FS10R06VE3B2BOMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    16 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    COMPLEX

  • JESD-30 Code:

    R-XUFM-X15

  • Number of Elements:

    6

  • Number of Terminals:

    15

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Reference Standard:

    UL RECOGNIZED

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    260 ns

  • Turn-on Time-Nom (ton):

    26 ns
