FS15R12VT3 - Infineon

Description: Infineon FS15R12VT3, IGBT Module, 3 Phase, 24 A max, 1200 V, 11-Pin EASY750

Download FS15R12VT3 Model

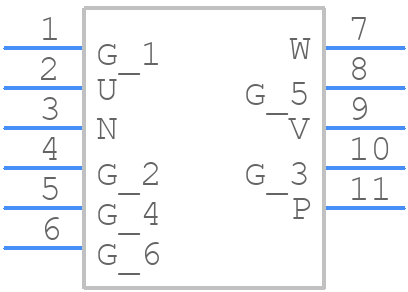

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

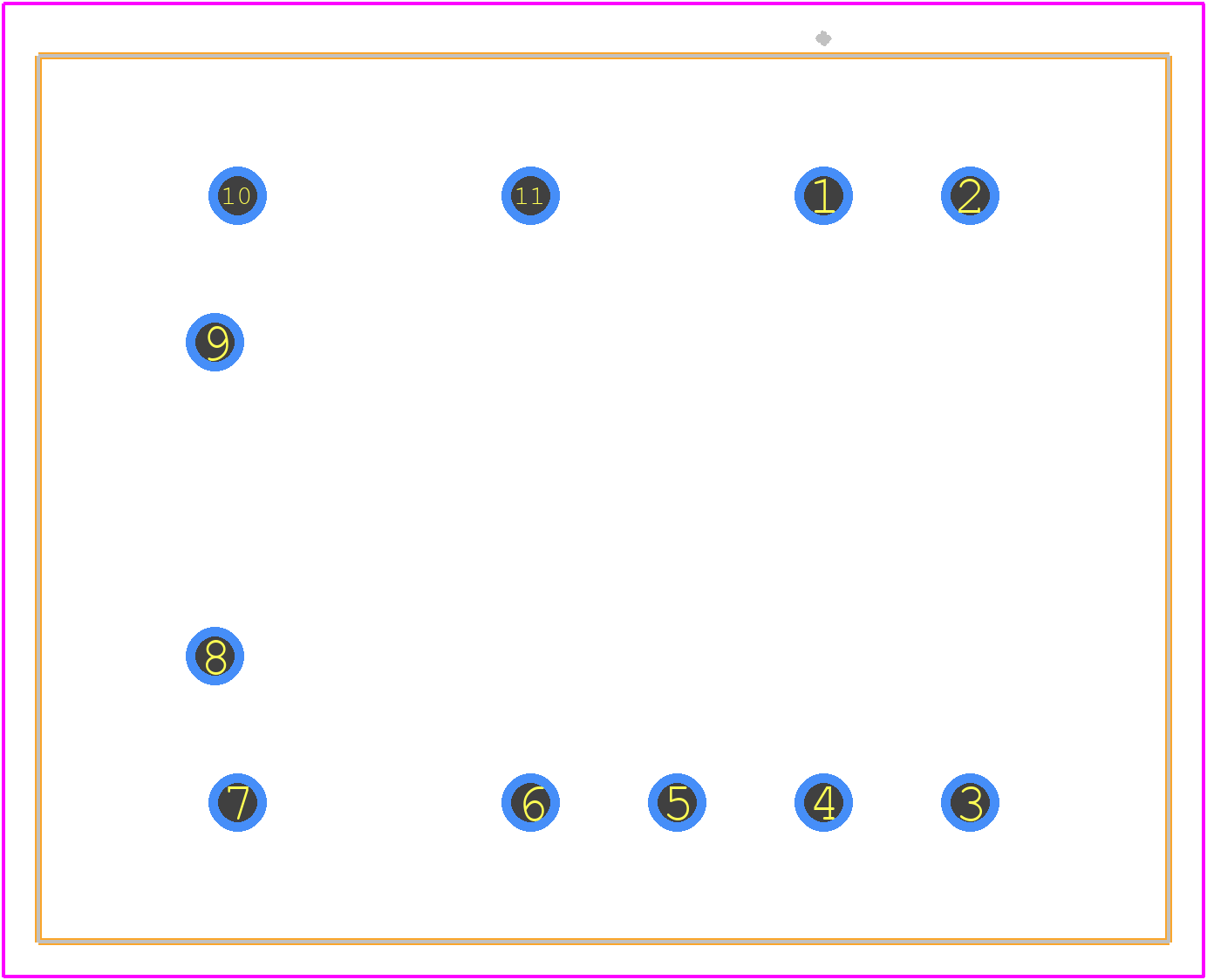

PCB Footprints
FS15R12VT3 - Infineon PCB footprint - Other - Other - FS15R12VT3-2
click to zoom
3D Models
FS15R12VT3 - Infineon  - 3D model - Other - FS15R12VT3-2
click to zoom

FS15R12VT3 Details

  • Manufacturer Part Number:

    FS15R12VT3

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    24 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X11

  • Number of Elements:

    6

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    86 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    590 ns

  • Turn-on Time-Nom (ton):

    72 ns

  • VCEsat-Max:

    2.15 V

FS15R12VT3 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS15R12VT3 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • The maximum current rating for the FS15R12VT3 is 15A, but it's essential to consider the device's thermal limitations and ensure proper cooling to prevent overheating.
  • To protect the FS15R12VT3, it's recommended to use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, as well as a fuse or a current limiter to prevent damage from excessive current.
  • The recommended PCB layout and thermal design for the FS15R12VT3 involves using a multi-layer PCB with a solid ground plane, placing the device near a heat sink, and ensuring good thermal conductivity between the device and the heat sink.
