FS200R07N3E4R - Infineon

Description: 650 V, 200 A sixpack IGBT module

Download FS200R07N3E4R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

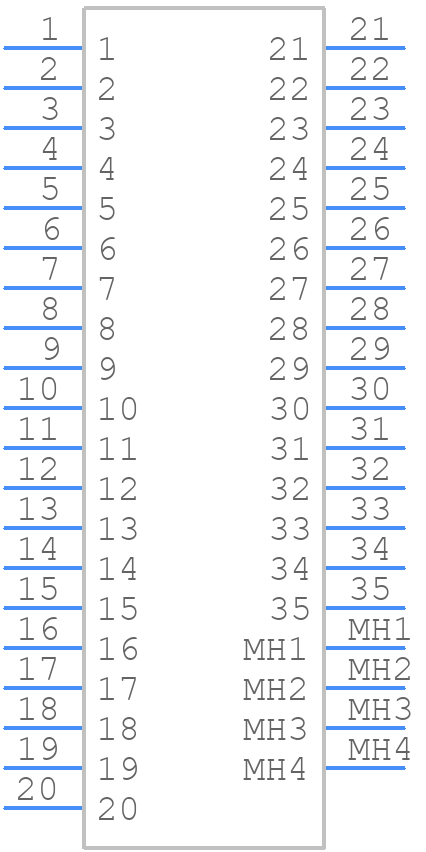

FS200R07N3E4R - Infineon - PCB symbol
click to zoom
PCB Footprints

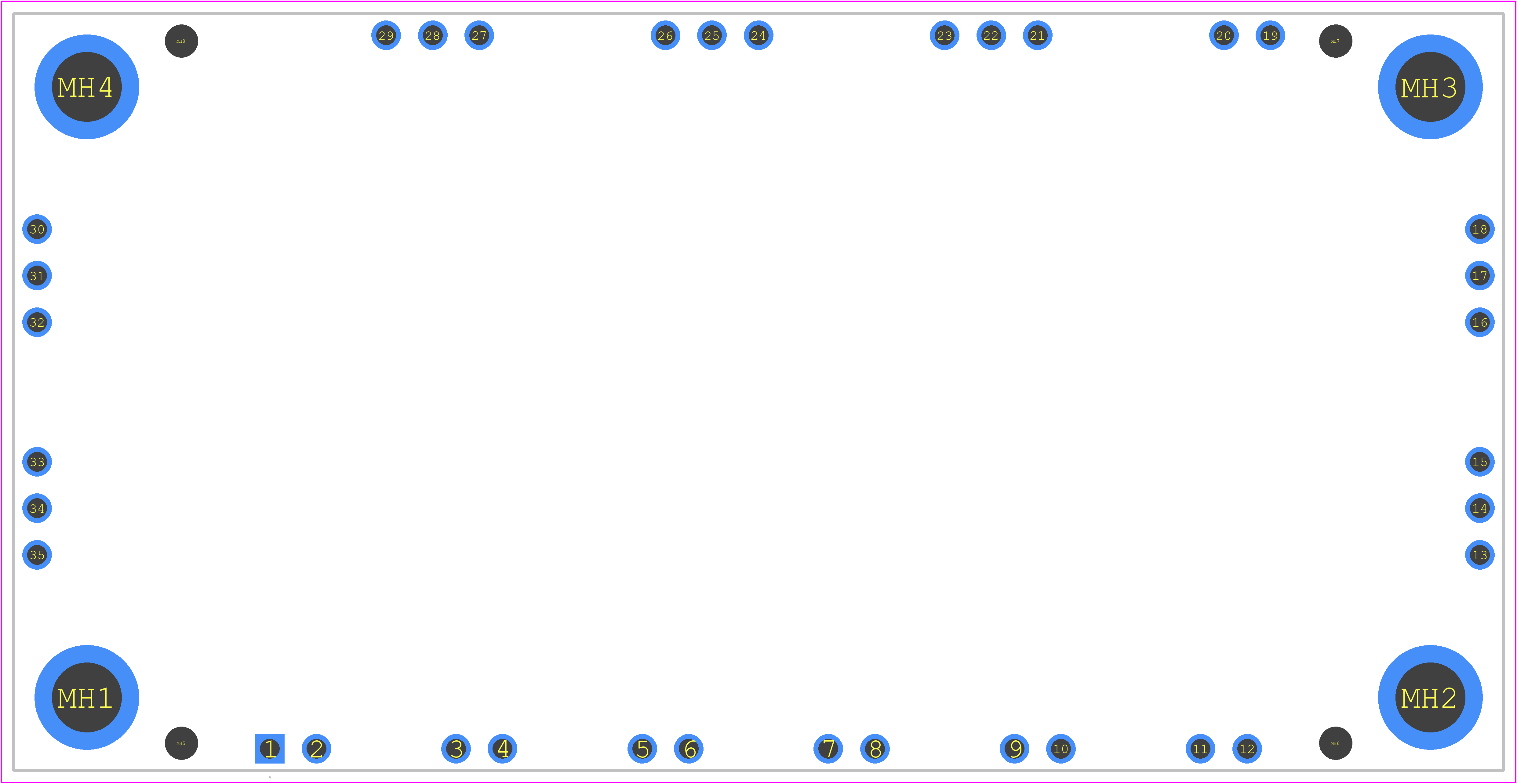

FS200R07N3E4R - Infineon PCB footprint - Other - Other - FS200R07N3E4R-2
click to zoom
3D Models
FS200R07N3E4R - Infineon - 3D model - Other - FS200R07N3E4R-2
click to zoom

FS200R07N3E4R Details

  • Manufacturer Part Number:

    FS200R07N3E4R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    35

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    200 A

  • Collector-Emitter Voltage-Max:

    650 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    6

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    600 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    450 ns

  • Turn-on Time-Nom (ton):

    210 ns

  • VCEsat-Max:

    1.95 V

FS200R07N3E4R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS200R07N3E4R is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • The maximum current rating for the FS200R07N3E4R is 200A, but it's essential to consider the device's thermal limitations and ensure proper cooling to prevent overheating.
  • Yes, you can use multiple FS200R07N3E4R devices in parallel to increase current handling, but it's crucial to ensure proper synchronization and thermal management to prevent uneven current distribution.
  • To protect the FS200R07N3E4R, you can use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, as well as ensure proper PCB layout and design to minimize parasitic inductance and capacitance.
