FS25R12KE3G - Infineon

Description: 1200 V, 25 A sixpack IGBT module

Download FS25R12KE3G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

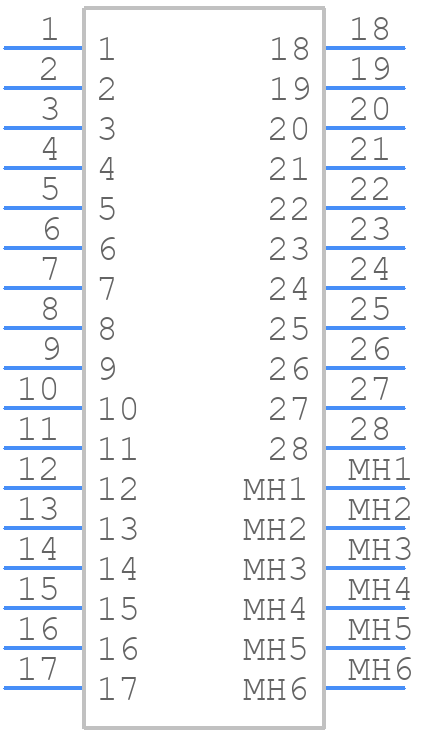

Symbol
FS25R12KE3G - Infineon - PCB symbol
click to zoom

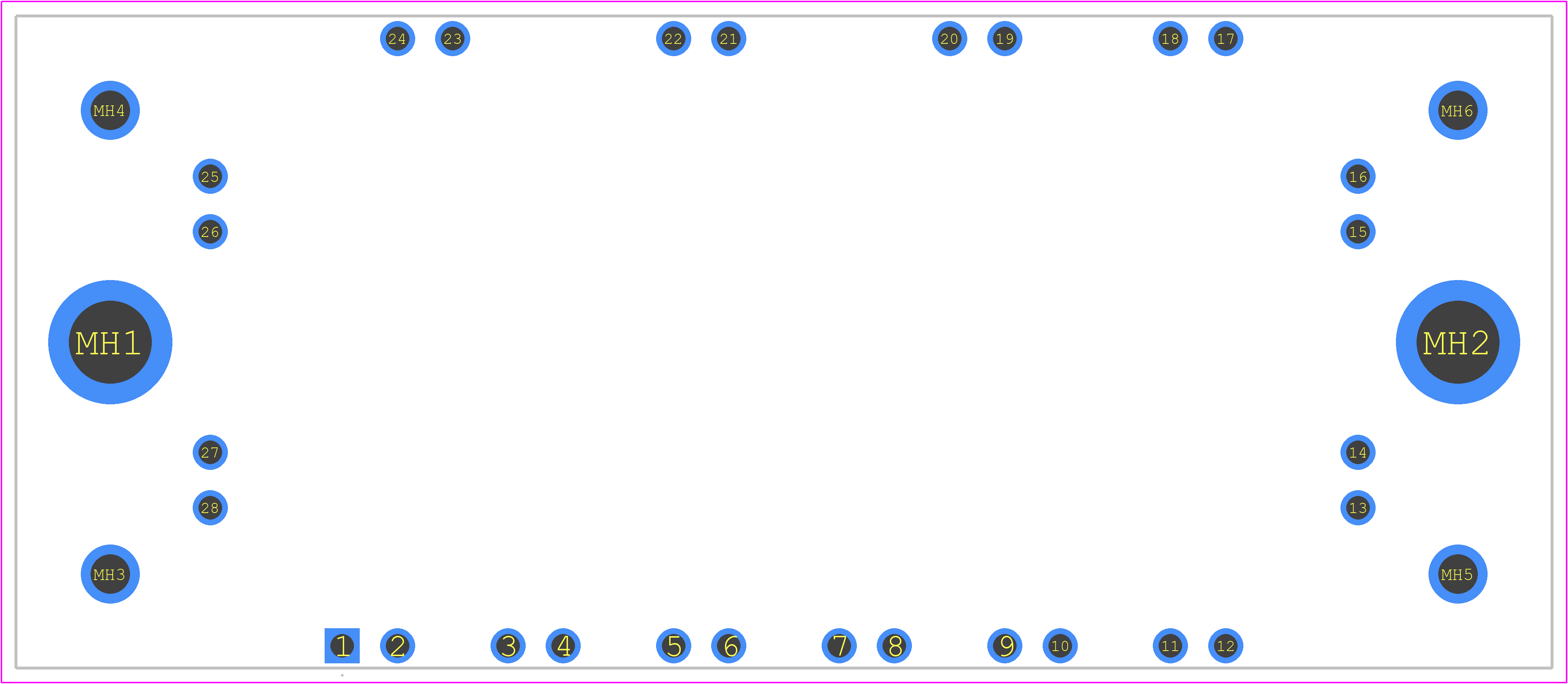

PCB Footprints
FS25R12KE3G - Infineon PCB footprint - Other - Other - FS25R12KE3G-2
click to zoom
3D Models
FS25R12KE3G - Infineon - 3D model - Other - FS25R12KE3G-2
click to zoom

FS25R12KE3G Details

  • Manufacturer Part Number:

    FS25R12KE3G

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    28

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    40 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X28

  • Number of Elements:

    6

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    145 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    610 ns

  • Turn-on Time-Nom (ton):

    140 ns

  • VCEsat-Max:

    2.1 V

FS25R12KE3G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS25R12KE3G is -40°C to 150°C, with a junction temperature (Tj) of up to 175°C.
  • To ensure reliability, follow the recommended thermal design and layout guidelines, use a suitable heat sink, and ensure proper cooling. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
  • The recommended gate drive voltage for the FS25R12KE3G is between 10V and 15V, with a maximum gate-source voltage (Vgs) of ±20V.
  • Yes, the FS25R12KE3G can be used in a parallel configuration to increase power handling. However, ensure that the devices are properly matched, and the gate drive and layout are designed to minimize differences in switching times and thermal performance.
  • The maximum allowed dv/dt for the FS25R12KE3G is 50V/ns, with a recommended value of 10V/ns to minimize electromagnetic interference (EMI) and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS25R12KE3G Overview

Use the download button to access the FS25R12KE3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS25R, or try a keyword search, such as IGBTs
