FS25R12W1T4 - Infineon

Description: Infineon FS25R12W1T4, IGBT Module, Array 6, 45 A max, 1200 V AG-EASY1B-1

Download FS25R12W1T4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

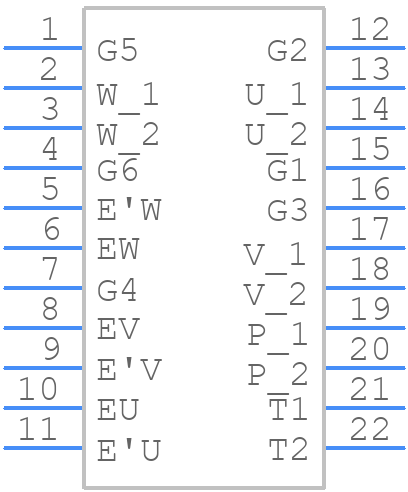

FS25R12W1T4 - Infineon - PCB symbol
click to zoom
PCB Footprints

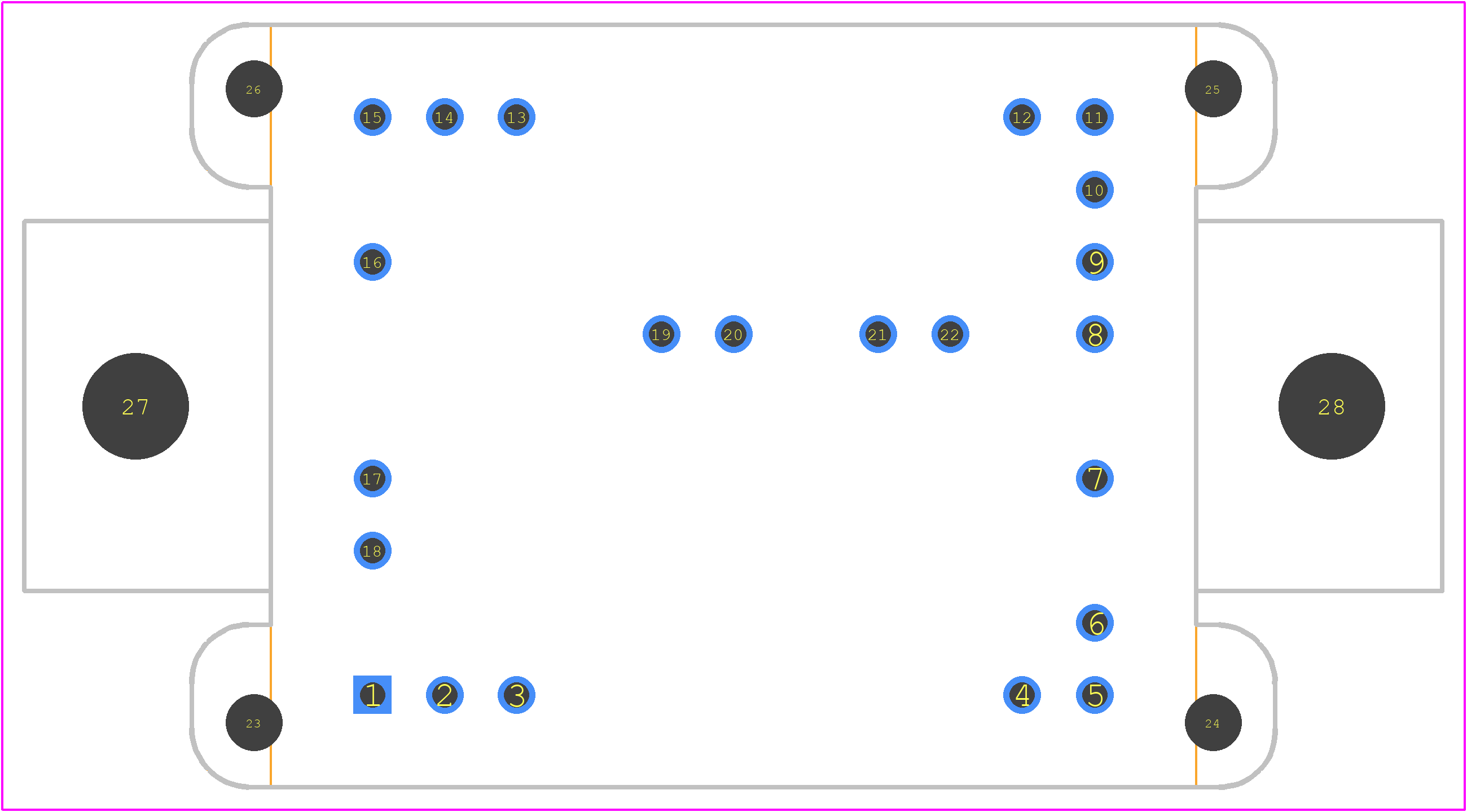

FS25R12W1T4 - Infineon PCB footprint - Other - Other - FS25R12W1T4-2
click to zoom
3D Models
FS25R12W1T4 - Infineon - 3D model - Other - FS25R12W1T4-2
click to zoom

FS25R12W1T4 Details

  • Manufacturer Part Number:

    FS25R12W1T4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    23

  • Country Of Origin:

    Germany, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    45 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X23

  • Number of Elements:

    6

  • Number of Terminals:

    23

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    205 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    505 ns

  • Turn-on Time-Nom (ton):

    80 ns

  • VCEsat-Max:

    2.25 V

FS25R12W1T4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the FS25R12W1T4 is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal design and layout guidelines, and to implement adequate cooling mechanisms to keep the junction temperature within the specified range.
  • The recommended gate resistor value for the FS25R12W1T4 is typically in the range of 10 Ω to 100 Ω, depending on the specific application and switching frequency.
  • Yes, the FS25R12W1T4 is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the device's switching losses, thermal performance, and layout parasitics to ensure reliable operation.
  • To protect the FS25R12W1T4, it's recommended to implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits, and to ensure that the device is operated within its specified voltage and current ratings.
