FS50R06W1E3 - Infineon

Description: IGBT Module Trench Field Stop Three Phase Inverter 600 V 70 A 205 W Chassis Mount Module

Download FS50R06W1E3 Model

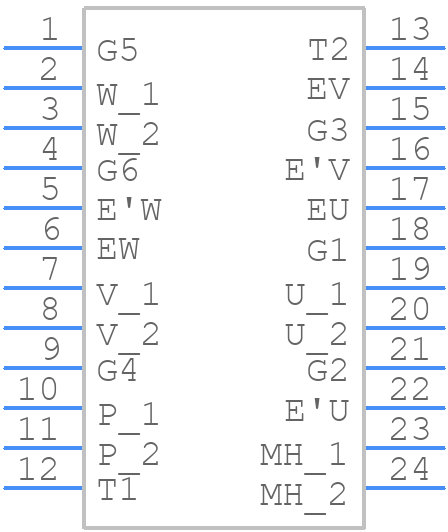

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FS50R06W1E3 - Infineon PCB footprint - Other - Other - 62.8 x 33.8 x 12mm
click to zoom

FS50R06W1E3 Details

  • Manufacturer Part Number:

    FS50R06W1E3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    22

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    70 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X15

  • Number of Elements:

    6

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    205 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    370 ns

  • Turn-on Time-Nom (ton):

    250 ns

  • VCEsat-Max:

    1.9 V

FS50R06W1E3 Frequently Asked Questions (FAQs)

  • The maximum junction temperature of the FS50R06W1E3 is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation.
  • To ensure proper cooling, make sure to attach a heat sink to the device, and apply a thermal interface material (TIM) to fill any gaps between the device and heat sink. Also, ensure good airflow around the heat sink.
  • The recommended gate resistor value for the FS50R06W1E3 is between 10 ohms and 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency.
  • Yes, the FS50R06W1E3 is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the device is properly cooled and the gate drive circuit is optimized for high-frequency operation.
  • To protect the FS50R06W1E3 from overvoltage and overcurrent, use a voltage clamp or a transient voltage suppressor (TVS) to limit the voltage, and a current sense resistor or a fuse to detect overcurrent conditions.
