FS50R06W1E3_B11 footprint, schematic symbol and 3D model by Infineon

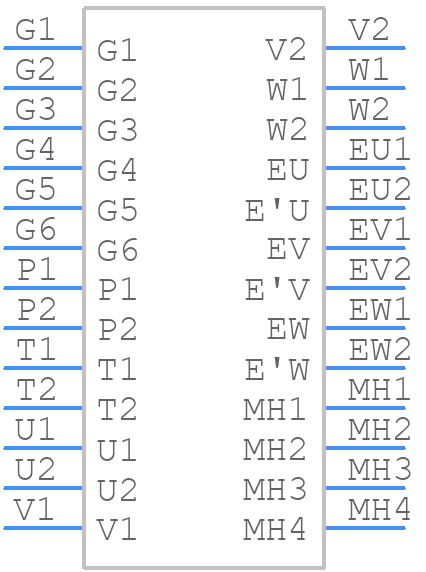

Symbol

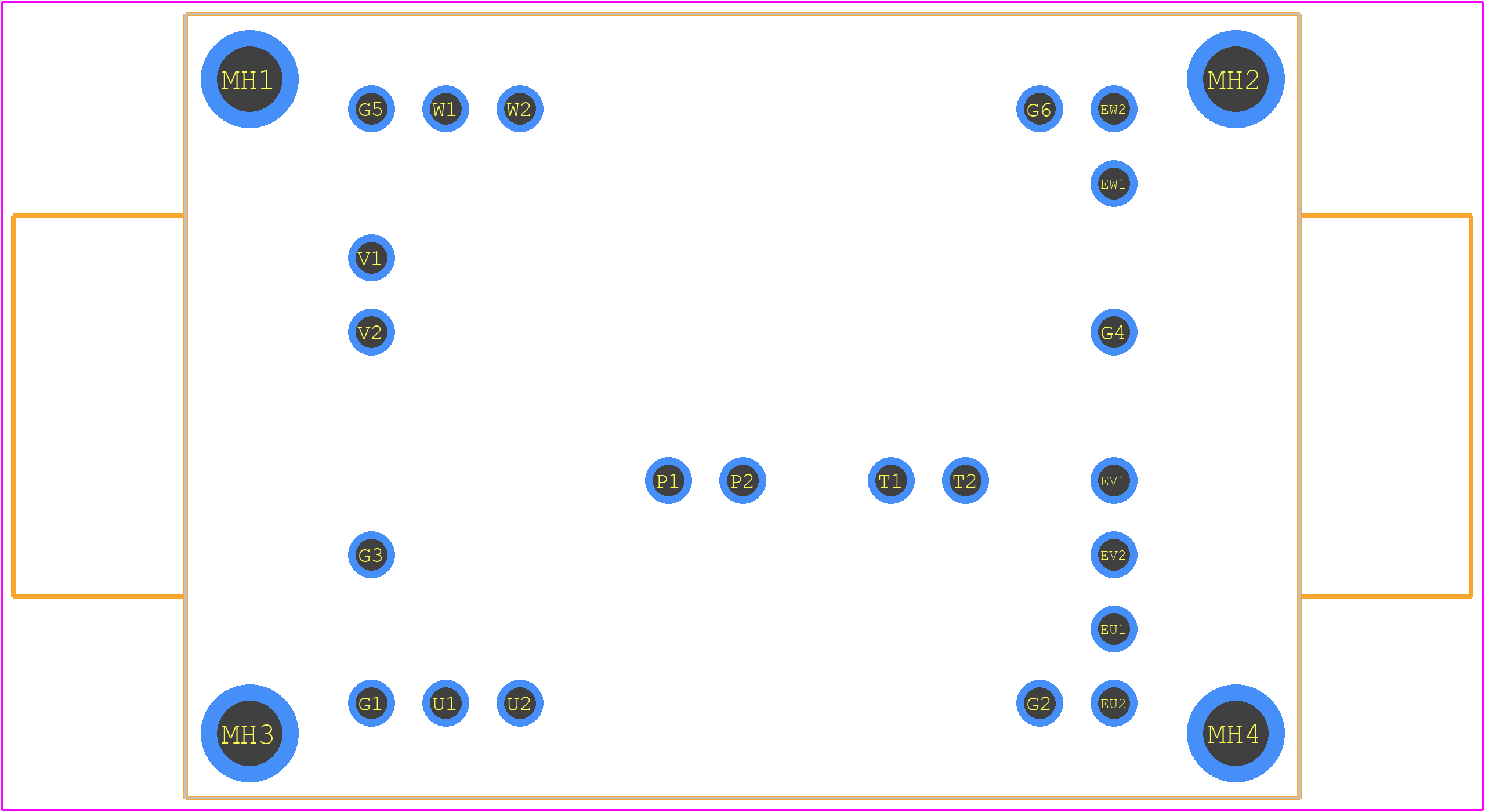

PCB Footprints

3D Models

FS50R06W1E3_B11 Details

The maximum operating temperature range for the FS50R06W1E3_B11 is -40°C to 150°C.
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, minimizing thermal resistance, and avoiding overheating.
The recommended gate resistor value for the FS50R06W1E3_B11 is typically in the range of 10 ohms to 100 ohms, depending on the specific application and switching frequency.
Yes, the FS50R06W1E3_B11 is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the device's switching losses, thermal management, and layout considerations.
To protect the FS50R06W1E3_B11, it's recommended to use overvoltage protection devices, such as TVS diodes, and overcurrent protection devices, such as fuses or current sensors, in addition to proper PCB layout and design considerations.

Expert Contribution

System Verified

Community Approved

Use the download button to access the FS50R06W1E3_B11 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS50R, or try a keyword search, such as IGBTs
