FS50R12KT4_B15 - Infineon

Description: Infineon FS50R12KT4_B15, IGBT Module, 3 Phase, 50 A max, 1200 V, 28-Pin Econo2

Download FS50R12KT4_B15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

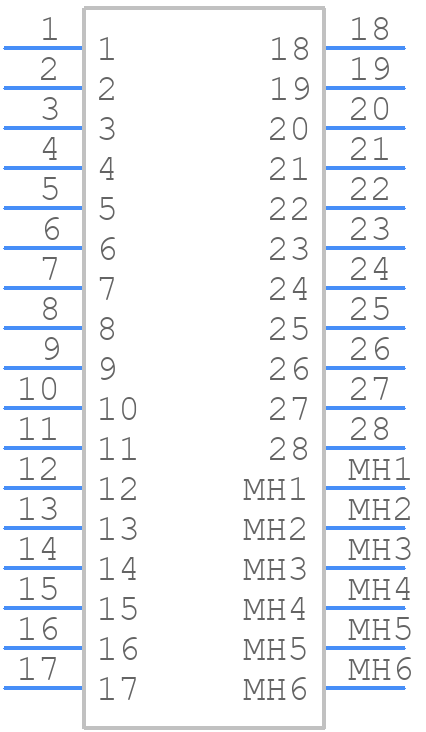

FS50R12KT4_B15 - Infineon - PCB symbol
click to zoom
PCB Footprints

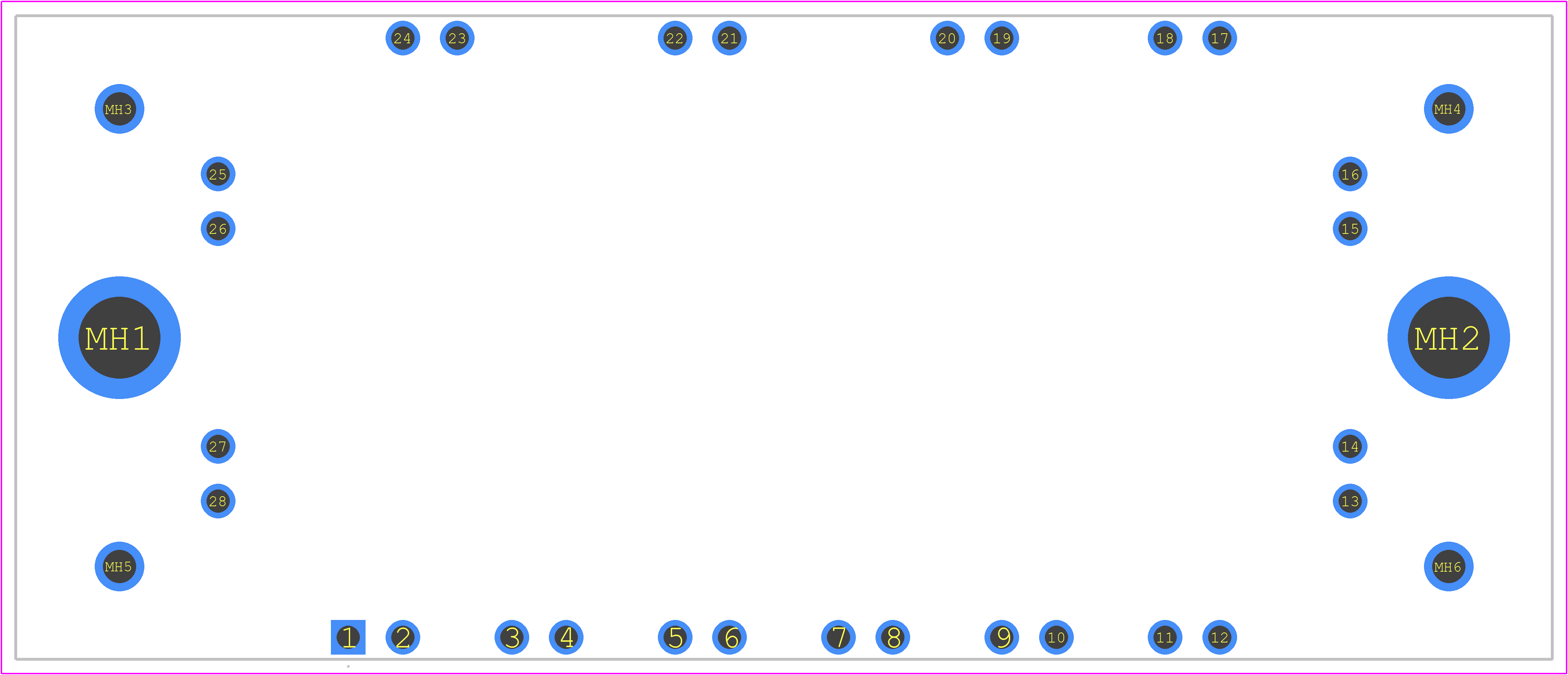

FS50R12KT4_B15 - Infineon PCB footprint - Other - Other - FS50R12KT4_B15-4
click to zoom
3D Models
FS50R12KT4_B15 - Infineon - 3D model - Other - FS50R12KT4_B15-4
click to zoom

FS50R12KT4_B15 Details

  • Manufacturer Part Number:

    FS50R12KT4_B15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    28

  • Country Of Origin:

    Hungary

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    50 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X28

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    6

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    280 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    490 ns

  • Turn-on Time-Nom (ton):

    185 ns

  • VCEsat-Max:

    2.15 V

FS50R12KT4_B15 Frequently Asked Questions (FAQs)

  • The maximum allowed case temperature for the FS50R12KT4_B15 is 150°C, as specified in the datasheet.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • The recommended gate resistor value for the FS50R12KT4_B15 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the FS50R12KT4_B15 can be used in a parallel configuration to increase current handling, but it's essential to ensure that the devices are properly matched and that the gate drive and thermal management are properly designed.
  • The maximum allowed voltage transient for the FS50R12KT4_B15 is 1200 V, as specified in the datasheet.
