FS75R07W2E3B11ABOMA1 footprint, schematic symbol and 3D model by Infineon

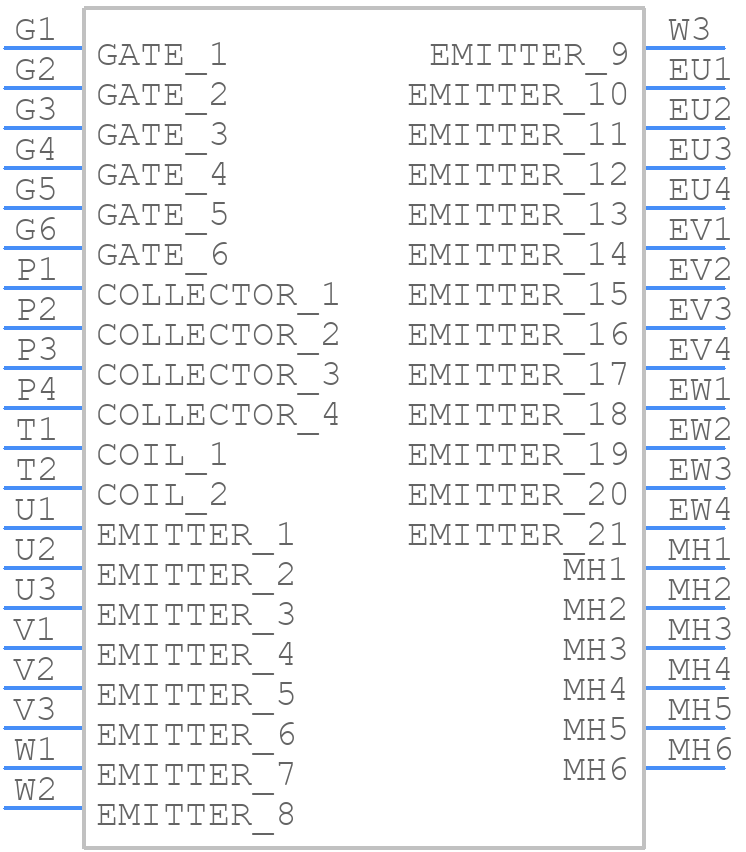

Symbol

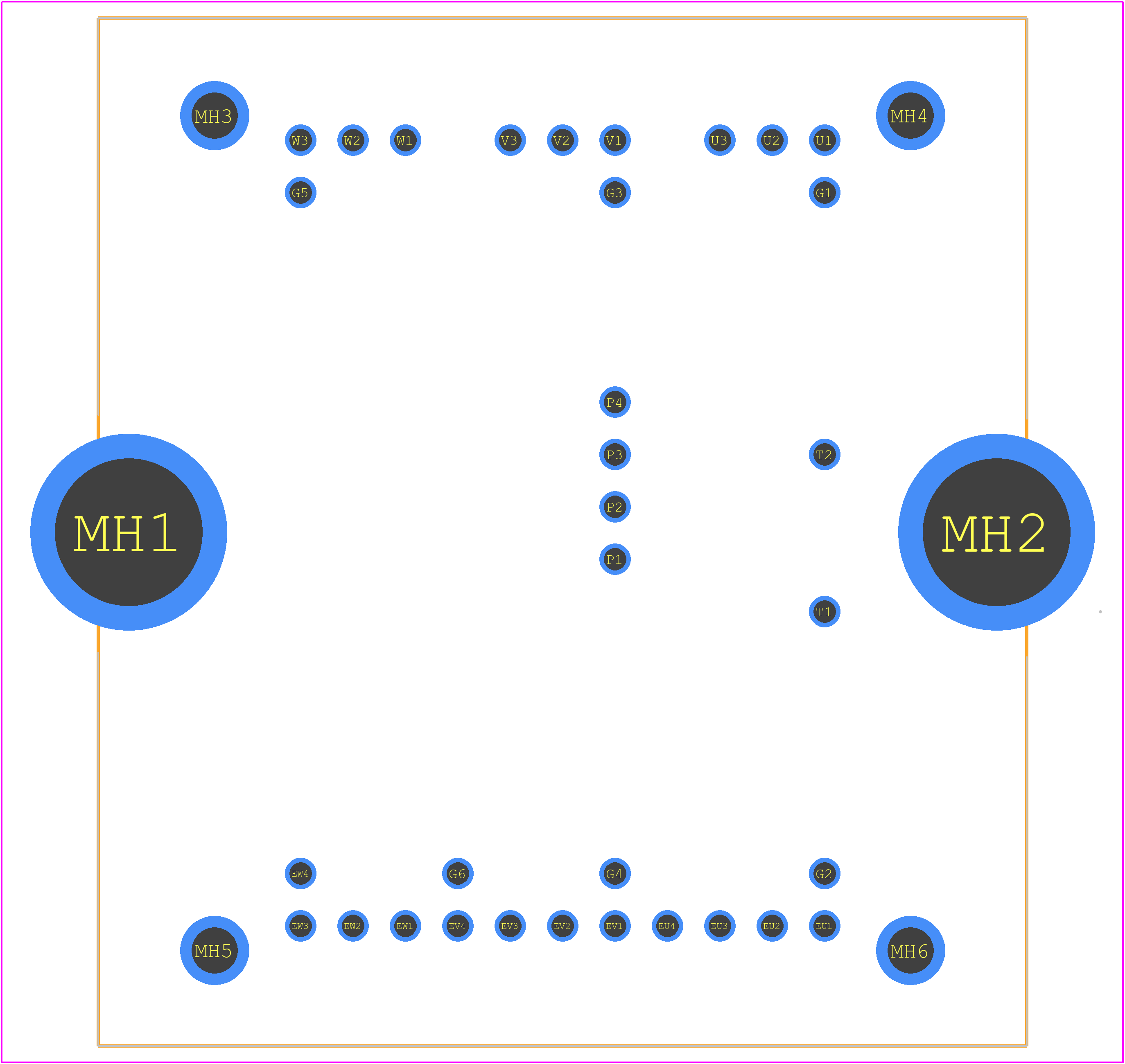

PCB Footprints

3D Models

FS75R07W2E3B11ABOMA1 Details

The maximum operating temperature range for the FS75R07W2E3B11ABOMA1 is -40°C to 150°C.
Proper cooling can be achieved through the use of a heat sink, thermal interface material, and ensuring good airflow around the device.
The recommended PCB layout and design considerations can be found in the Infineon application note AN2013-01, which provides guidelines for designing a PCB for the FS75R07W2E3B11ABOMA1.
To protect the device from ESD, handle the device by the body, use an ESD wrist strap or mat, and ensure that the PCB is designed with ESD protection in mind.
The recommended soldering conditions for the FS75R07W2E3B11ABOMA1 can be found in the Infineon application note AN2013-02, which provides guidelines for soldering and assembly.

Expert Contribution

System Verified

Community Approved

Use the download button to access the FS75R07W2E3B11ABOMA1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FS75R, or try a keyword search, such as IGBTs
