The recommended PCB layout for optimal thermal performance involves using a large copper area for heat dissipation, keeping the component away from heat sources, and using thermal vias to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the component.
The critical parameters to monitor for fault detection and protection include overcurrent, overvoltage, undervoltage, and overheating. Implementing protection circuits and monitoring these parameters can help prevent damage to the component and ensure reliable operation.
To optimize the gate driver circuit for efficient switching, it's essential to select a suitable gate driver IC, ensure proper impedance matching, and optimize the gate resistance and capacitance values for minimal power loss and EMI.
When handling the FS75R07W2E3_B11A, it's essential to follow proper ESD precautions, avoid touching the component pins, and use an anti-static wrist strap or mat to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS75R07W2E3_B11A Overview

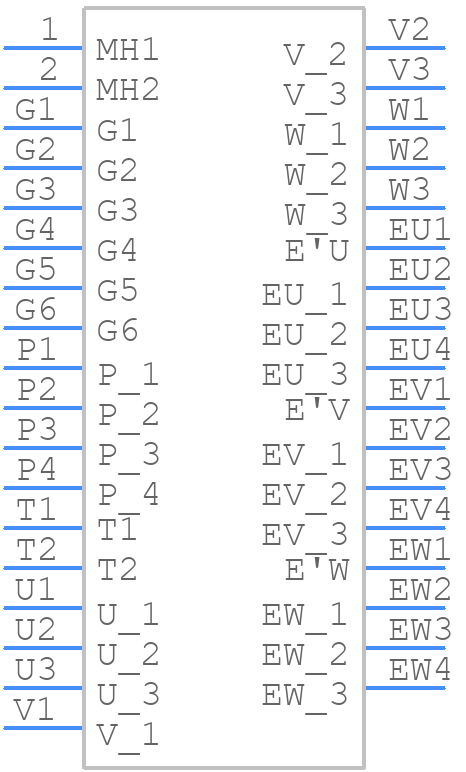

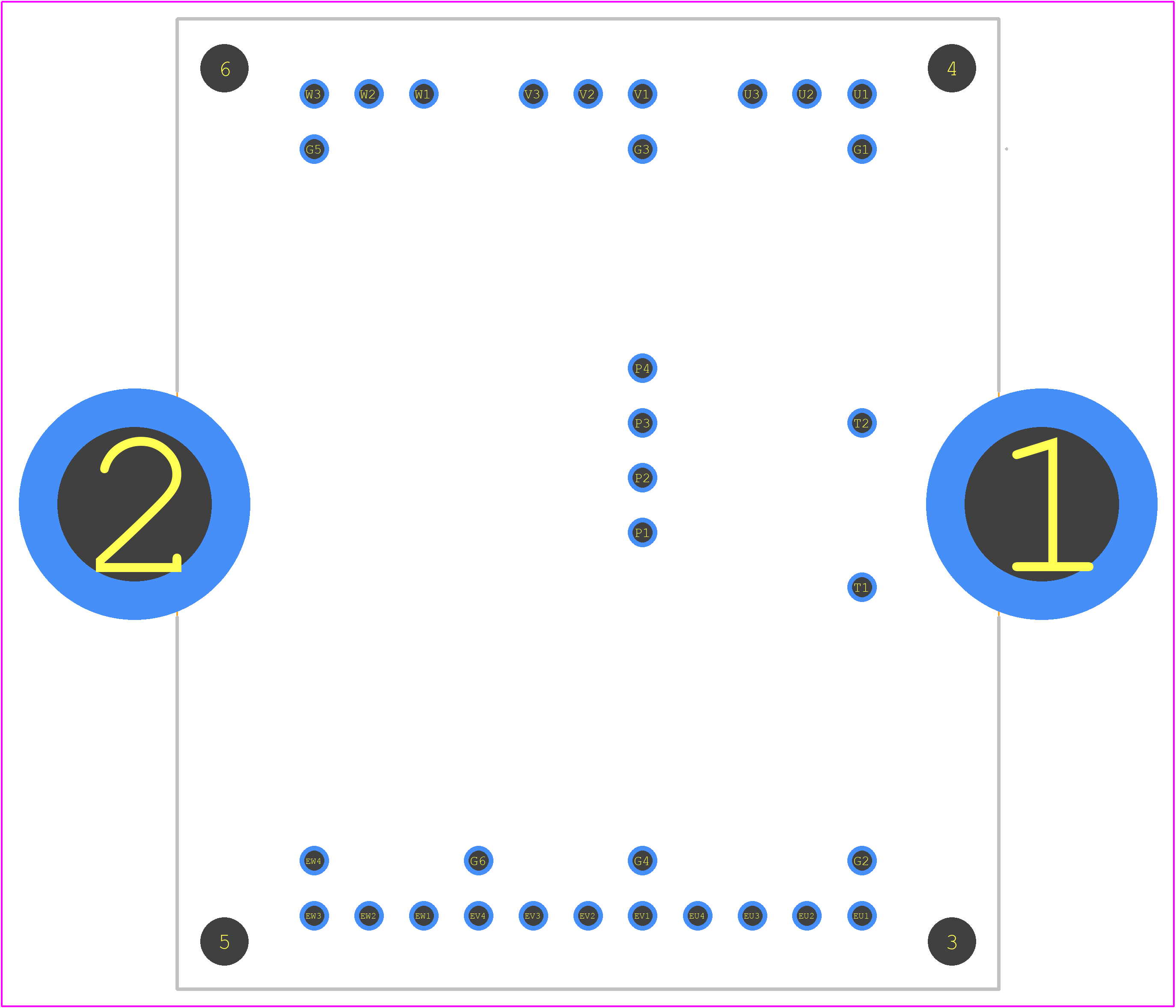

Use the download button to access the FS75R07W2E3_B11A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS75R,
or try a keyword search, such as IGBTs
