FS75R12KS4 - Infineon

Description: IGBT Modules 1200V 75A 3-PHASE

Download FS75R12KS4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

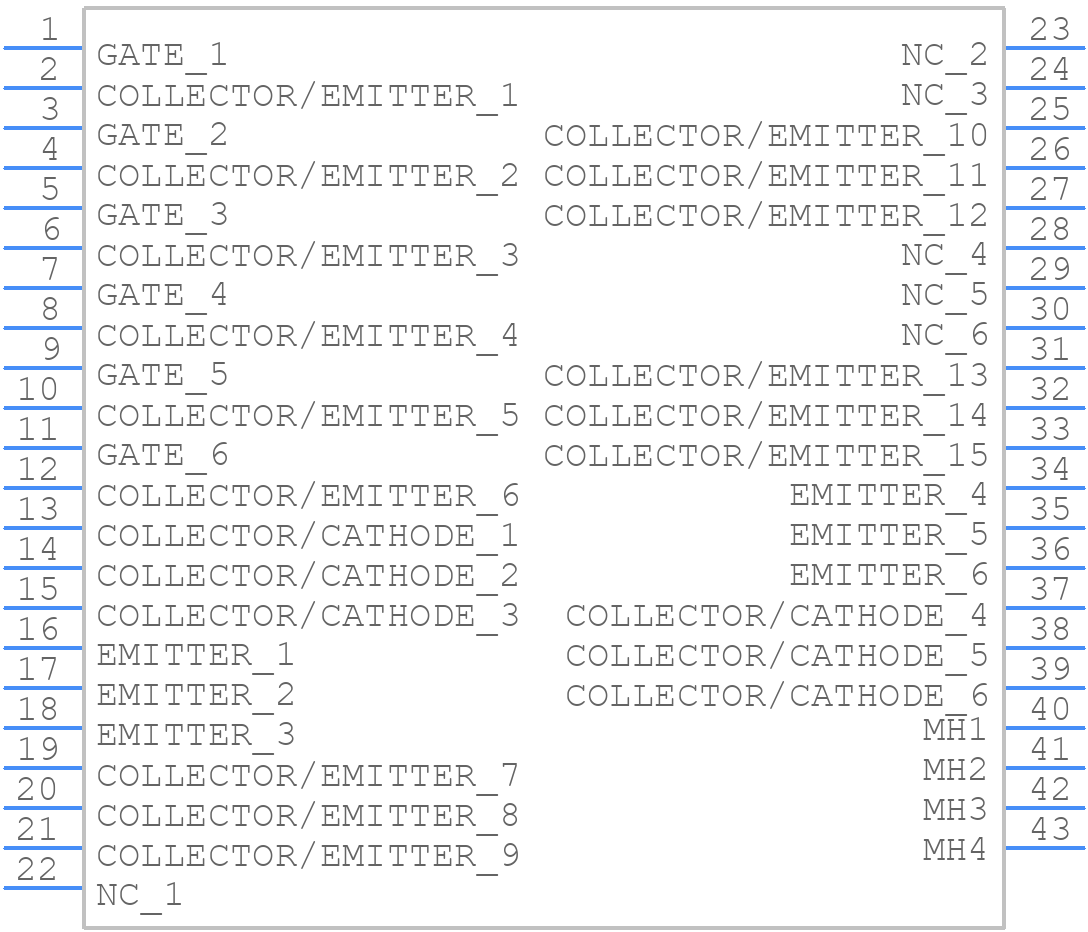

FS75R12KS4 - Infineon - PCB symbol
click to zoom
PCB Footprints

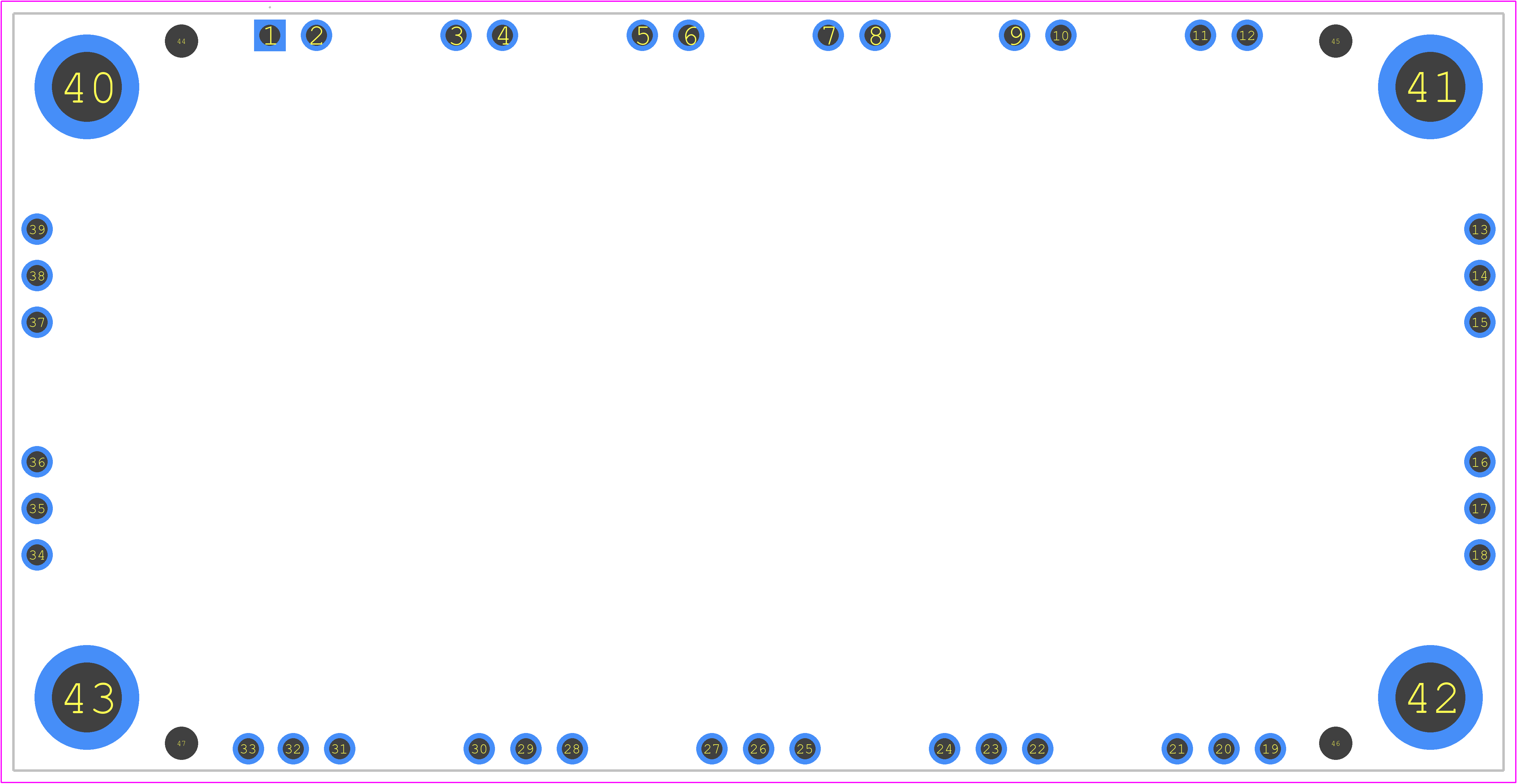

FS75R12KS4 - Infineon PCB footprint - Other - Other - FS75R12KS4-3
click to zoom
3D Models
FS75R12KS4 - Infineon - 3D model - Other - FS75R12KS4-3
click to zoom

FS75R12KS4 Details

  • Manufacturer Part Number:

    FS75R12KS4

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    39

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    100 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X39

  • Number of Elements:

    6

  • Number of Terminals:

    39

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    500 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    390 ns

  • Turn-on Time-Nom (ton):

    190 ns

  • VCEsat-Max:

    3.7 V

FS75R12KS4 Frequently Asked Questions (FAQs)

  • According to Infineon's application notes, the maximum allowed voltage imbalance is ±10% of the nominal voltage between any two phases.
  • Infineon recommends using a heat sink with a thermal resistance of ≤ 0.5 K/W, and ensuring a minimum air gap of 1 mm between the heat sink and the module. Additionally, the module should be mounted on a PCB with a thermal vias design to dissipate heat effectively.
  • Infineon recommends using a gate resistance of 10 Ω to 20 Ω for optimal switching performance and to minimize electromagnetic interference (EMI).
  • Yes, the FS75R12KS4 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management. Infineon provides guidelines for parallel operation in their application notes.
  • The maximum allowed dv/dt for the FS75R12KS4 is 10 kV/μs, as specified in the datasheet. Exceeding this value may lead to premature aging or failure of the module.
