Description:Package: 10-Lead MicroPak™ 1.6 x 2.1 mm, 0.5 mm Pitch; Switch Type: Isolation Switch Closes for Charging Downstream Port (CDP) and Standard Downstream Port (SDP); 1.7 GHz Bandwidth; USB Detection: USB Battery Charging Rev. 1.2; Supports Data Contact Detect (DCD); Dead Battery Provision (DBP) with 30-Minute Timer; VBUS: 28 V Over-Voltage Tolerance, -2 V Under-Voltage Tolerance
A good PCB layout for the FSA831AL10X should minimize parasitic inductance and capacitance. Keep the input and output traces short and wide, and use a solid ground plane to reduce noise. Also, place the device close to the power source and use a low-ESR capacitor for decoupling.
The FSA831AL10X requires a bias voltage of 2.5V to 5.5V on the VCC pin. Ensure that the bias voltage is stable and within the recommended range. Also, make sure the input voltage is within the recommended range of 1.8V to 5.5V.
The FSA831AL10X can handle a maximum continuous current of 1A. However, it's recommended to derate the current handling capability based on the ambient temperature and PCB layout to ensure reliable operation.
To troubleshoot issues with the FSA831AL10X, start by checking the input voltage, bias voltage, and output voltage using an oscilloscope. Verify that the input and output capacitors are properly sized and placed. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
The FSA831AL10X is rated for operation up to 125°C. However, it's recommended to derate the device's performance and reliability at high temperatures. Ensure that the device is properly heatsinked and that the ambient temperature is within the recommended range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FSA831AL10X Overview

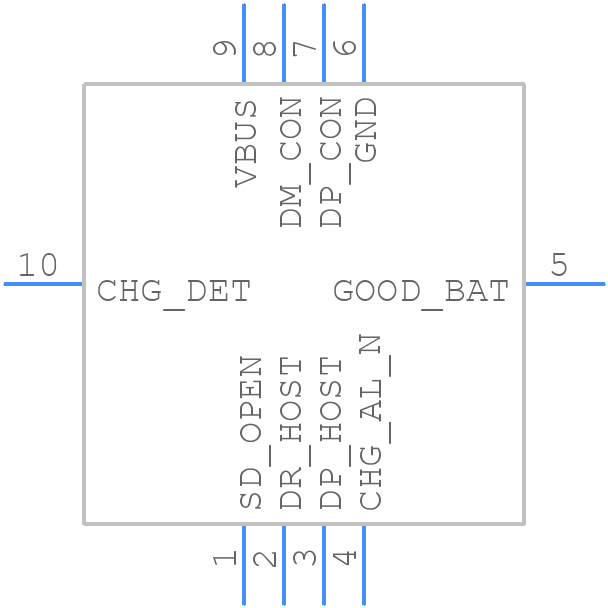

Use the download button to access the FSA831AL10X schematic symbol and PCB footprint.
