FSA832L10X - onsemi

Description: Proprietary Charger and Other Detection:; USB Detection: USB Battery Charging Rev. 1.2; Supports Data Contact Detect (DCD) Dead Battery Provision (DBP) with 30-Minute Timer; 2.7 V / 2.0 V on DP/DM ; Standard Downstream Port (SDP); Charging Downstream Port (CDP) ; 28 V Over-Voltage Tolerance; VBUS; DP/DM Floating; Switch Type: Isolation Switch Closes for ; PS/2 Port Detection; Package: 10-Lead MicroPak™ 1.6 x 2.1 mm, 0.5 mm Pitch; -2 V Under-Voltage Tolerance

Download FSA832L10X Model

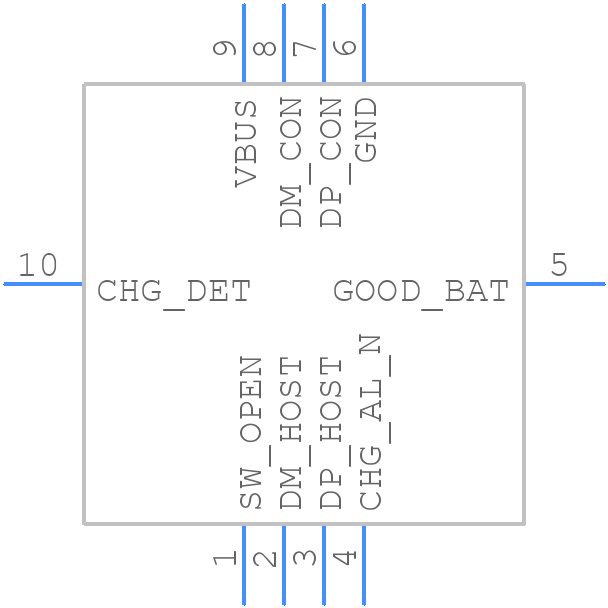

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FSA832L10X - onsemi PCB footprint - Other - Other - UQFN10 1.6X2.1, 0.5P CASE 523AZ ISSUE O
click to zoom
3D Models
FSA832L10X - onsemi  - 3D model - Other - UQFN10 1.6X2.1, 0.5P CASE 523AZ ISSUE O
click to zoom

FSA832L10X Details

  • Manufacturer Part Number:

    FSA832L10X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UQFN-10

  • Manufacturer Package Code:

    523AZ

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

FSA832L10X Frequently Asked Questions (FAQs)

  • A good PCB layout for the FSA832L10X involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a resistor (e.g., 10 kΩ) and a capacitor (e.g., 100 nF) in series. This helps to filter out noise and ensures the device is properly enabled.
  • The maximum current rating of the FSA832L10X is 1.5 A. However, it's recommended to derate the current to 1.2 A for reliable operation and to prevent overheating.
  • To protect the FSA832L10X from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended operating range (2.5 V to 5.5 V). Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
  • To manage thermal performance, ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The FSA832L10X has a thermal shutdown feature that activates when the junction temperature exceeds 150°C, so it's essential to monitor the device temperature and take corrective action to prevent overheating.
