FT232RNL-TUBE - FTDI Chip

Description: USB Interface IC USB Full Speed to Serial UART IC, Includes Oscillator and EEPROM, SSOP-28

Download FT232RNL-TUBE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

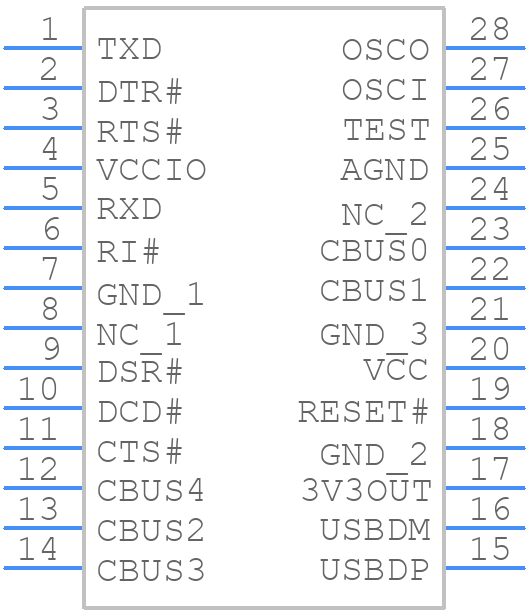

FT232RNL-TUBE - FTDI Chip - PCB symbol
click to zoom
PCB Footprints
FT232RNL-TUBE - FTDI Chip PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28
click to zoom
3D Models
FT232RNL-TUBE - FTDI Chip - 3D model - Small Outline Packages - SSOP-28
click to zoom

FT232RNL-TUBE Details

  • Manufacturer Part Number:

    FT232RNL-TUBE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-28

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    FTDI Chip

  • YTEOL:

    6.65

  • Bus Compatibility:

    UART

  • Clock Frequency-Max:

    12.02 MHz

  • Data Transfer Rate-Max:

    60 MBps

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

FT232RNL-TUBE Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the FT232RNL is 3 meters (10 feet) for a reliable connection. However, it's recommended to use a cable length of 1.5 meters (5 feet) or less for optimal performance.
  • Yes, the FT232RNL is compatible with USB 3.0 ports, but it will operate at USB 2.0 speeds. The device is designed to be backward compatible with USB 2.0 and 1.1 ports as well.
  • The FT232RNL can be configured for 5V or 3.3V operation by connecting the VCCIO pin to either the 5V or 3.3V power rail. The device will automatically detect the voltage level and adjust its output accordingly.
  • The FT232RNL has a maximum data transfer rate of 3 Mbps (3000000 bps) in asynchronous mode and 1 Mbps (1000000 bps) in synchronous mode.
  • Yes, the FT232RNL supports non-standard baud rates. However, the device may not be able to achieve the exact baud rate requested, and the closest achievable rate will be used instead.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FT232RNL-TUBE Overview

Use the download button to access the FT232RNL-TUBE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FT232, or try a keyword search, such as Bus Controllers
