FTCO3V455A1 - onsemi

Description: 40V-150A 3-phase trench MOSFET inverter bridge ; UL94V-0 compliant ; Mounting through screws ; 100% lead free and RoHS compliant 2000/53/C directive ; Isolation rating of 2500Vrms/min ; DBC substrate ; 1% precision shunt current sensing ; Temperature sensing

Download FTCO3V455A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

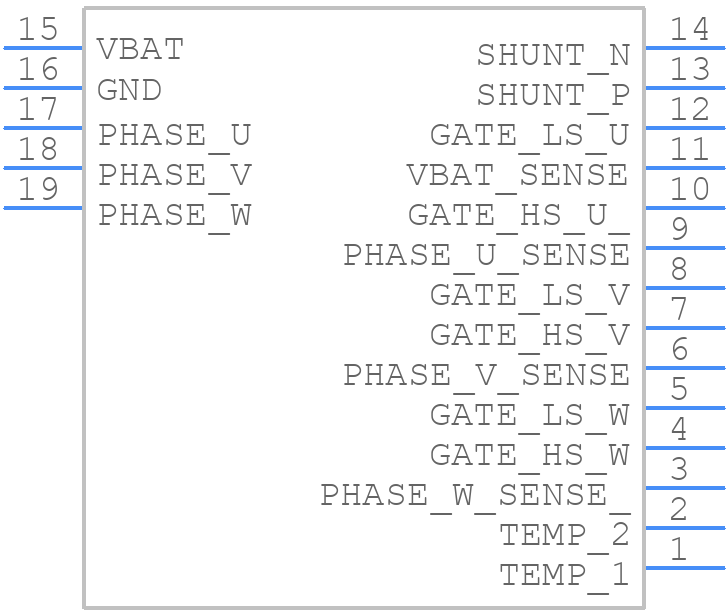

FTCO3V455A1 - onsemi - PCB symbol
click to zoom
PCB Footprints

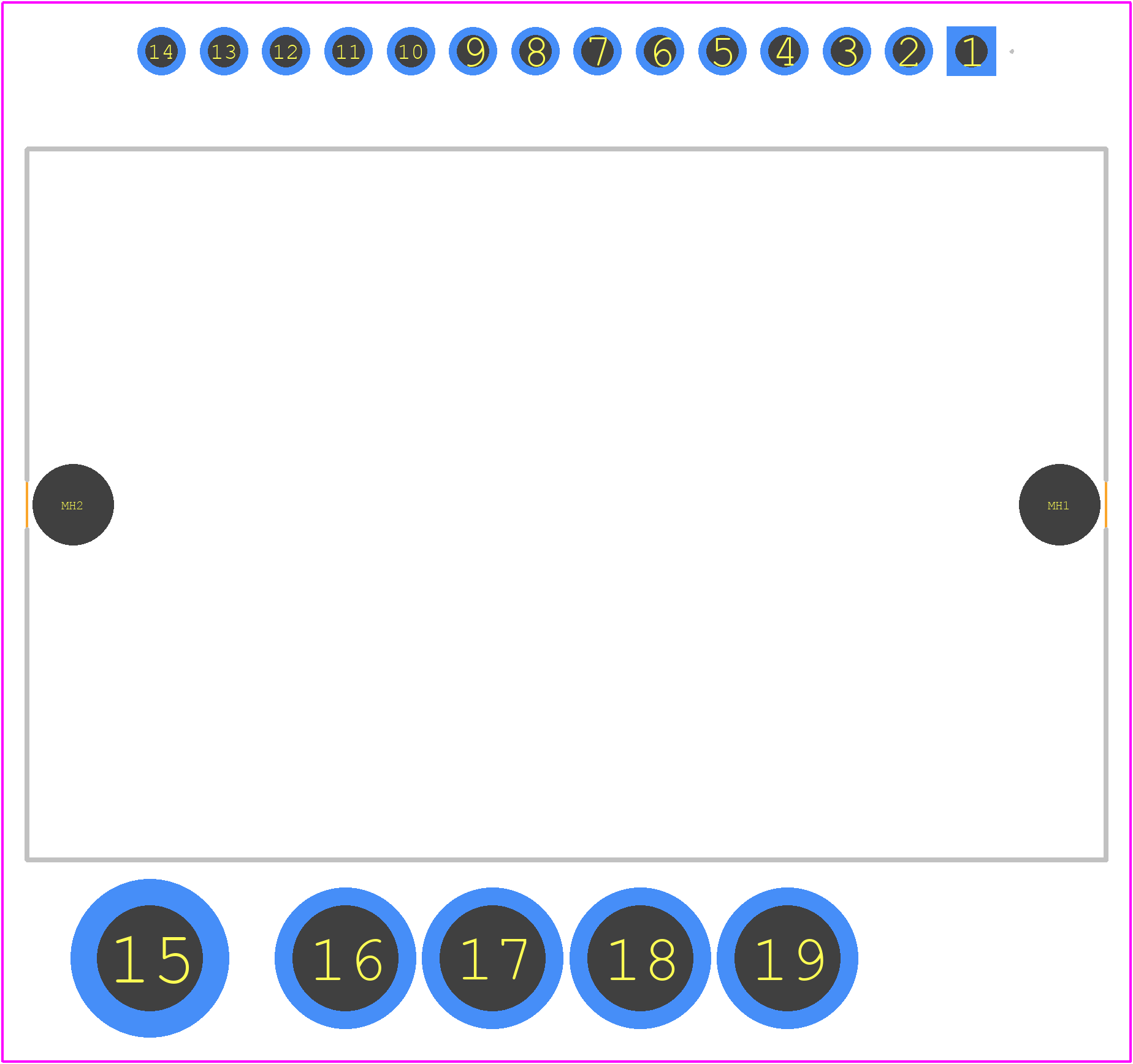

FTCO3V455A1 - onsemi PCB footprint - Other - Other - FTCO3V455A1-1
click to zoom
3D Models
FTCO3V455A1 - onsemi - 3D model - Other - FTCO3V455A1-1
click to zoom

FTCO3V455A1 Details

  • Manufacturer Part Number:

    FTCO3V455A1

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    APM-19

  • Package Description:

    MODULE-19

  • Manufacturer Package Code:

    MODCG

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDFM-T19

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

FTCO3V455A1 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power dissipation at high temperatures.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
  • Yes, the FTCO3V455A1 is suitable for switching regulator applications. However, ensure that the device is properly bypassed and decoupled to minimize noise and voltage transients.
  • The FTCO3V455A1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FTCO3V455A1 Overview

Use the download button to access the FTCO3V455A1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FTCO3, or try a keyword search, such as Motion Control Electronics
