Description:Dedicated devices can operate both on a Type-C receptacle or a Type-C plug with a fixed CC and VCONN channel.; Current Capability Detection as Device; USB Power Delivery (PD) 2.0, Version 1.1 Support ; Current Capability Indication as Host; Low Power Operation: ICC = 25 µA (Typical); Automatic Hard Reset Ordered Set Sent ; Dual-Role Functionality with Autonomous DRP Toggle ; Audio Adapter Accessory Mode; Default CC open for SRC application.; Automatic retries of sending a packet if a GoodCRC is not received
The recommended PCB layout for FUSB302TV01MPX involves keeping the device as close as possible to the USB connector, using a solid ground plane, and minimizing the length of the USB data lines. Additionally, it's recommended to use a common mode filter and a shielded cable to reduce EMI.
To ensure reliable operation of FUSB302TV01MPX in high-temperature environments, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using a thermal interface material, and keeping the device within its recommended operating temperature range (−40°C to +105°C).
When selecting bypass capacitors for FUSB302TV01MPX, consider the capacitor's voltage rating, capacitance value, and equivalent series resistance (ESR). A 1 μF to 10 μF ceramic capacitor with a low ESR (< 1 Ω) is recommended for bypassing the VBUS pin, while a 100 nF to 1 μF capacitor is suitable for bypassing the VDD pin.
To troubleshoot issues with FUSB302TV01MPX, start by verifying the device's power supply, checking for proper PCB layout and routing, and ensuring that the device is properly configured and initialized. Use tools like oscilloscopes or logic analyzers to debug the USB signals and identify any issues with the device's communication with the host.
When using FUSB302TV01MPX in a USB-C application with Power Delivery (PD) capabilities, ensure that the device is properly configured to support PD, and that the system is designed to handle the increased power delivery capabilities. Additionally, consider the implications of PD on the system's power management and thermal design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FUSB302TV01MPX Overview

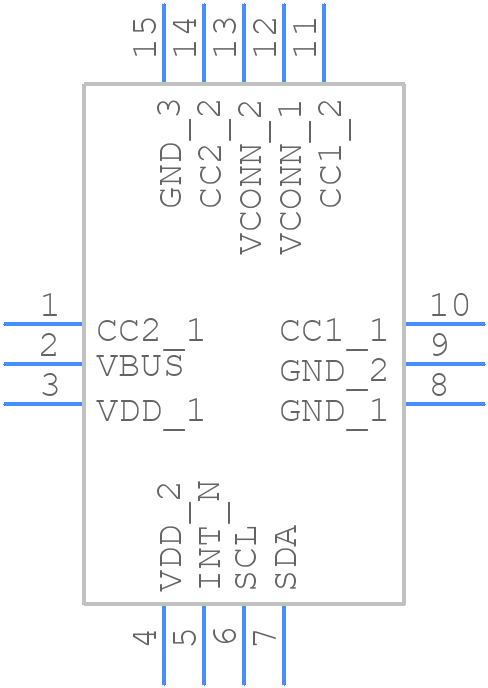

Use the download button to access the FUSB302TV01MPX schematic symbol, PCB footprint, and 3D model.
